NOSHOK® 254-16-40/160inH2O-1-43-71-TC

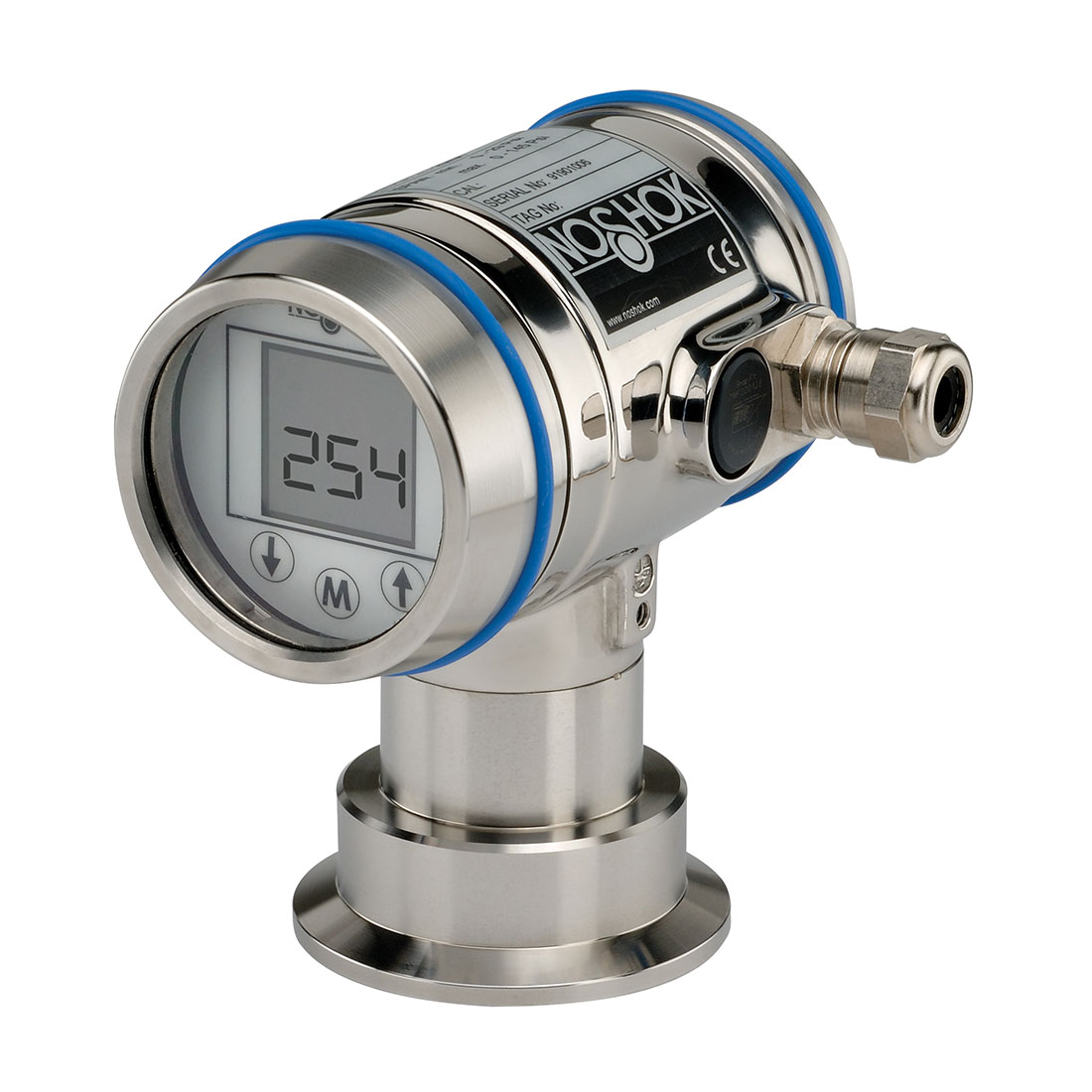

NOSHOK® 25 Series Sanitary Transmitter, Tri Clamp 2", Range Adjustable from 0 inH2O to 40 inH2O to 0 inH2O to 160 inH2O, 0.2% of adjusted span, 4-20 mA/2-wire + HART Protocol, PG9 Cable Gland, Transparent Cover

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 254-16-40/160INH2O-1-43-71-TC
  • MPN: 254-16-40/160inH2O-1-43-71-TC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® 25 Series Sanitary Transmitter, Tri Clamp 2", Range Adjustable from 0 inH2O to 40 inH2O to 0 inH2O to 160 inH2O, 0.2% of adjusted span, 4-20 mA/2-wire + HART Protocol, PG9 Cable Gland, Transparent Cover

California residents see Prop 65 WARNINGS

Series      :      25 Series Pressure Transmitters
Pressure Low      :      1.45 PSI
Pressure High      :      5.8 PSI
Connection Material      :      316 Stainless Steel
Operating Temperature Low      :      -20 deg C
Operating Temperature Low      :      -4 deg F
Operating Temperature High      :      100 deg C
Operating Temperature High      :      212 deg F
Housing Material      :      304 Stainless Steel, 316 Stainless Steel
Output Signal      :      4 mA to 20 mA 2-wire, 4 mA to 20 mA 2-wire and Hart® signal
Electrical Protection      :      PG9 Cable Gland
Stability      :      < 0.1%/year
Adjustment      :      By 3 push buttons on display or optional Hart® signal
Cover Ring Material      :      Polished Brass
Response Time      :      <100 ms
