NOSHOK® 615-50inH2O-1-1-8-37-6in

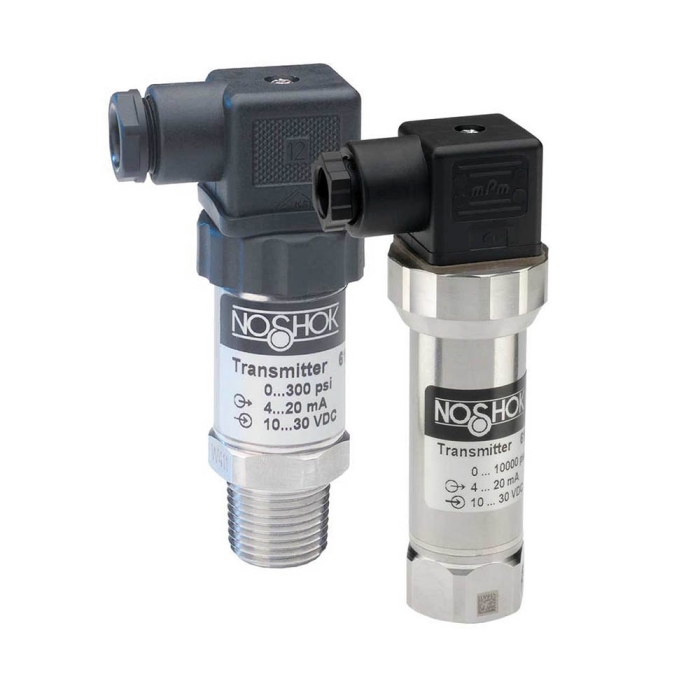

NOSHOK® 615 High-Accuracy Heavy-Duty Pressure Transducer, 1/2 in MPT, 0 - 50 inH2O, 4 - 20 mA, 2-Wire Output

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 615-50INH2O-1-1-8-37-6IN
  • MPN: 615-50inH2O-1-1-8-37-6in
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK High-Accuracy Heavy-Duty Pressure Transducer, 615 Series, Pressure Range: 0 - 50 inH2O, Process Connection: 1/2 in MPT, Electrical Connection: 1/2 in NPT Potted Conduit with 6 in Flying Lead, +/-0.25% Full Scale (BFSL) Accuracy, Output Signal: 4 - 20 mA, 2-Wire, Power Required: 10 - 30 VDC, Response Time: <1 ms, -15 to 175 deg F Ambient, -20 to 212 deg F Media, -40 to 212 deg F Storage, 316 Stainless Steel, Enclosure: IP65, Dimensions: 1.06 in Dia x 4 in L

California residents see Prop 65 WARNINGS

Material      :      316 Stainless Steel
Product Type      :      Pressure Transducer
Temperature Rating      :      -15 to 175 deg F Ambient, -20 to 212 deg F Media, -40 to 212 deg F Storage
Series      :      615
Enclosure      :      IP65
Dimensions      :      1.06 in Dia x 4 in L
Pressure Range      :      0 - 50 inH2O
Process Connection      :      1/2 in MPT
Accuracy      :      +/-0.25% Full Scale (BFSL)
Power Required      :      10 - 30 VDC
Output Signal      :      4 - 20 mA, 2-Wire
Electrical Connection      :      1/2 in NPT Potted Conduit with 6 in Flying Lead
Response Time      :      <1 ms
  • Vacuum ranges through 0 - 145000 psi, absolute ranges from 0 - 15 psi through 0 - 300 psi
  • 316 and 17-4PH stainless steel wetted parts
  • Stability <= +/-0.2% full scale per year, non-accumulating
  • Adjustment +/-10% full scale for zero and span
  • Service life - >100000000 load cycles
  • Load limitations <= (Vpower-10)/0.02 A
  • Proof pressure 3 times full scale
  • Burst pressure 3.8 times full scale
  • Measuring element 316 stainless steel
  • Electrical protection reverse polarity, over-voltage and short circuit protection
  • Shock 1000 g according to IEC 60068-2-27
  • Vibration 15 g according to IEC 60068-2-6

Applications: Ideal for applications including construction, hydraulics and pneumatics, laboratory and test equipment, power generation, stamping and forming presses and transportation
