NOSHOK® 628-10000-1-1H-14-3-CH
Send Print
  1. pin-int

NOSHOK® 628-10000-1-1H-14-3-CH

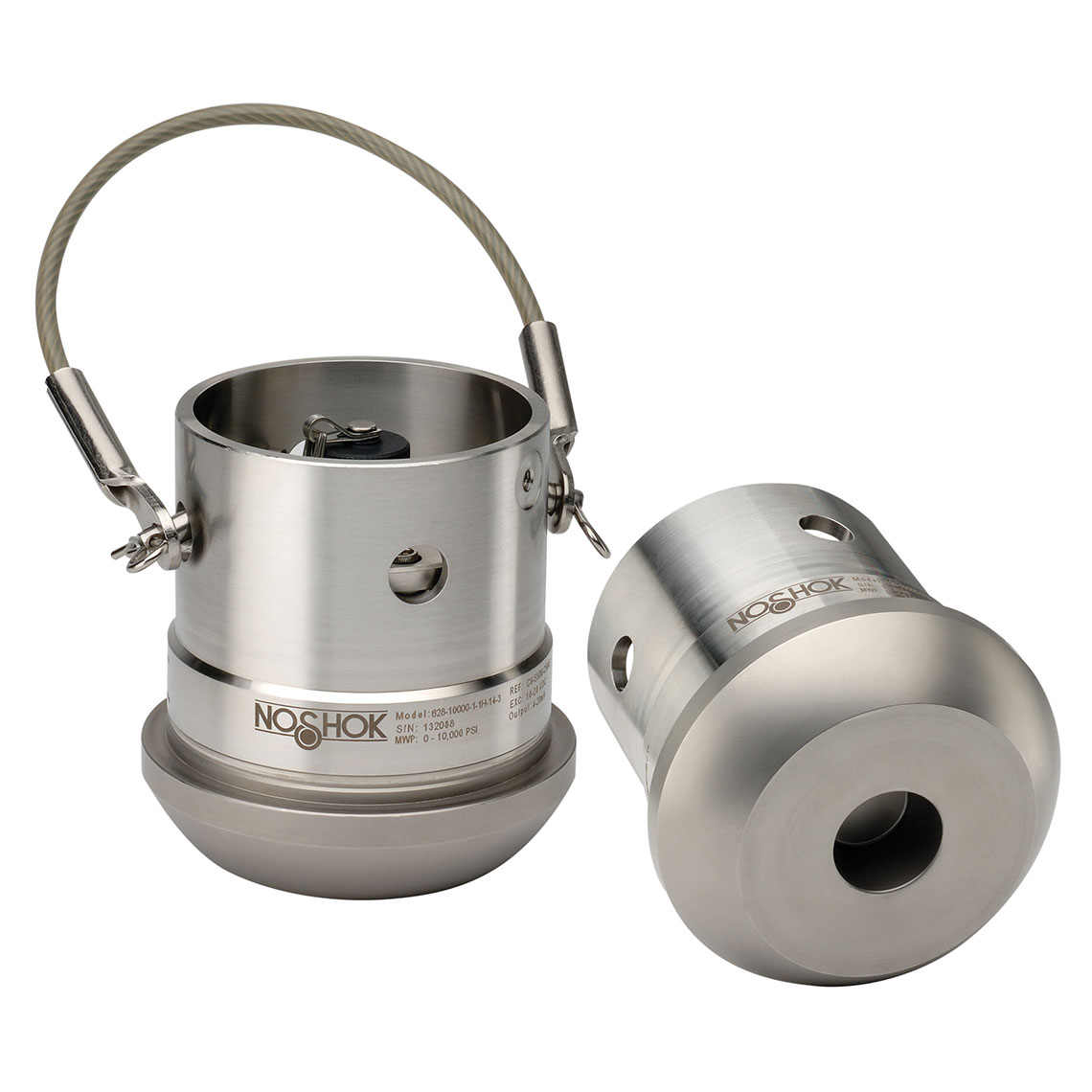

NOSHOK® Pressure Transmitter, 0 psig to 10000 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 2 in Wing Union, 6 Pin Bendix, Carrying Handle

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 628-10000-1-1H-14-3-CH
  • MPN: 628-10000-1-1H-14-3-CH
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Pressure Transmitter, 0 psig to 10000 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, 2 in Wing Union, 6 Pin Bendix, Carrying Handle

California residents see Prop 65 WARNINGS

Material      :      316 Stainless Steel
Product Type      :      Pressure Transmitter
Temperature Rating      :      -40 to 185 deg F Ambient, -40 to 185 deg F Media, -40 to 185 deg F Storage
Series      :      628
Enclosure      :      IP67
Pressure Low      :      0 PSI
Pressure High      :      10,000 PSI
Connection Material      :      Inconel X-750
Ambient Temperature Low      :      -40 deg C
Ambient Temperature Low      :      -40 deg F
Ambient Temperature High      :      185 deg F
Ambient Temperature High      :      85 deg C
Pressure Range      :      0 - 10000 psig
Operating Temperature Low      :      -40 deg C
Operating Temperature Low      :      -40 deg F
Process Connection      :      2 in Wing Union
Operating Temperature High      :      -85 deg C
Operating Temperature High      :      185 deg F
Accuracy      :      +/-0.25% Full Scale (BFSL)
Media Temperature Low      :      -40 deg C
Media Temperature Low      :      -40 deg F
Power Required      :      10 - 28 VDC
Media Temperature High      :      185 deg F
Media Temperature High      :      85 deg C
Industry Standards      :      European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Request for Information (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Output Signal      :      4 - 20 mA, 2-Wire
Electrical Protection      :      Reverse polarity, over-voltage and short circuit protected
Electrical Connection      :      6-Pin Bendix (MIL-C-26482)
Service Life      :      < 10,000,000 load cycles
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6      :      15 g
Shock According to International Electrotechnical Commission (IEC) 60068      :      100 g
Stability      :      = ±0.2% full scale for 1 year, non-accumulating
Compensated Temperature Low      :      40 deg F
Compensated Temperature Low      :      5 deg C
Compensated Temperature High      :      140 deg F
Compensated Temperature High      :      60 deg C
Load Limitations      :      = (VPower-10)/0.020 Amp
Cover Ring Material      :      Polished Brass
Response Time      :      <2 ms
  • Ranges from 0 - 5000 psi through 0 - 20000 psi
  • Current output
  • Inconel X-750 wetted parts
  • Every sensor comes with a certificate of calibration
  • Stability <= +/-0.2% full scale per year, non-accumulating
  • Service life - >10000000 load cycles
  • Load limitations <= (Vpower-10)/0.02 A
  • Proof pressure 1.5 times full scale
  • Burst pressure 3 times full scale
  • Measuring element Inconel X-750
  • Electrical protection reverse polarity, over-voltage and short circuit protection
  • Shock 100 g according to IEC 60068-2-27
  • Vibration 15 g according to IEC 60068-2-6

Applications: Ideal for applications including acidizing, choke and kill manifold, fracturing and cementing, mud logging and mud pumps, oil field and offshore and well head measurement
