NOSHOK® 627-15-1-1-N-38-40

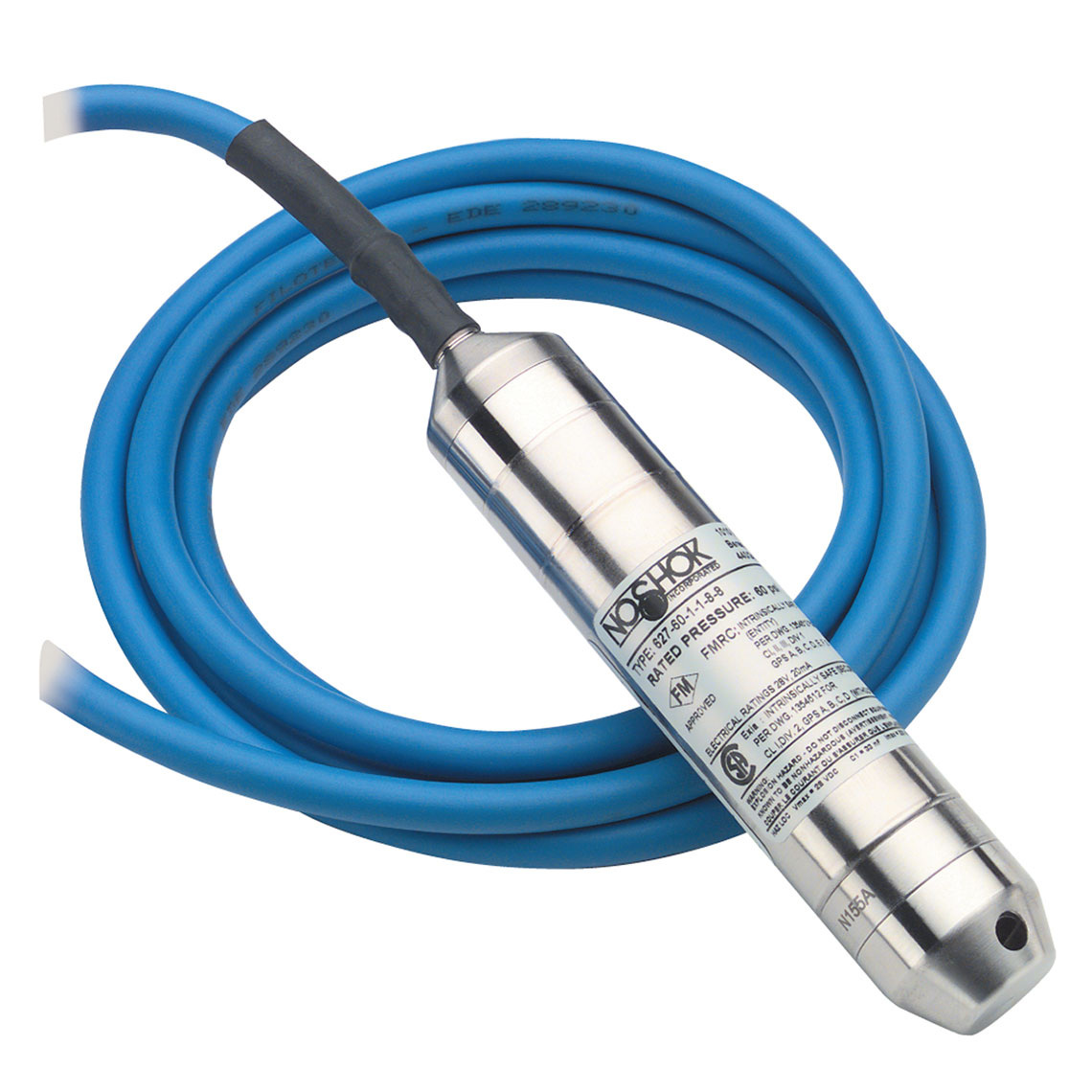

NOSHOK® Submersible Pressure Transmitter, 0 psig to 15 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 40 ft FEP Cable

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 627-15-1-1-N-38-40
  • MPN: 627-15-1-1-N-38-40
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Submersible Pressure Transmitter, 0 psig to 15 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 40 ft FEP Cable

California residents see Prop 65 WARNINGS

Series      :      627 Series Pressure Transmitters
Connection Type      :      Nosecone
Pressure Low      :      0 PSI
Pressure High      :      15 PSI
Connection Material      :      Stainless Steel Nosecone
Ambient Temperature Low      :      -10 deg C
Ambient Temperature Low      :      15 deg F
Ambient Temperature High      :      122 deg F
Ambient Temperature High      :      50 deg C
Operating Temperature Low      :      -30 deg F
Operating Temperature Low      :      -34 deg C
Operating Temperature High      :      175 deg F
Operating Temperature High      :      60 deg C
Media Temperature Low      :      -10 deg C
Media Temperature Low      :      15 deg F
Media Temperature High      :      175 deg F
Media Temperature High      :      60 deg C
Housing Material      :      316 Stainless Steel
Industry Standards      :      European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Request for Information (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Output Signal      :      4 mA to 20 mA, 2-wire; 1 Vdc to 5 Vdc low power, 3-wire; 0.5 Vdc to 4.5 Vdc low power, 3-wire
Electrical Protection      :      Reverse polarity, over-voltage and short circuit protected
Service Life      :      < 100,000,000 load cycles
Stability      :      = ±0.2% full scale for 1 year, non-accumulating
Compensated Temperature Low      :      0 deg C
Compensated Temperature Low      :      32 deg F
Compensated Temperature High      :      122 deg F
Compensated Temperature High      :      50 deg C
Load Limitations      :      = (VPower-10)/0.020 Amp-(0.043 O x length of cable in feet)
Cover Ring Material      :      Polished Brass
Response Time      :      =1 ms
