NOSHOK® 612-2-1-1-N-4-DC

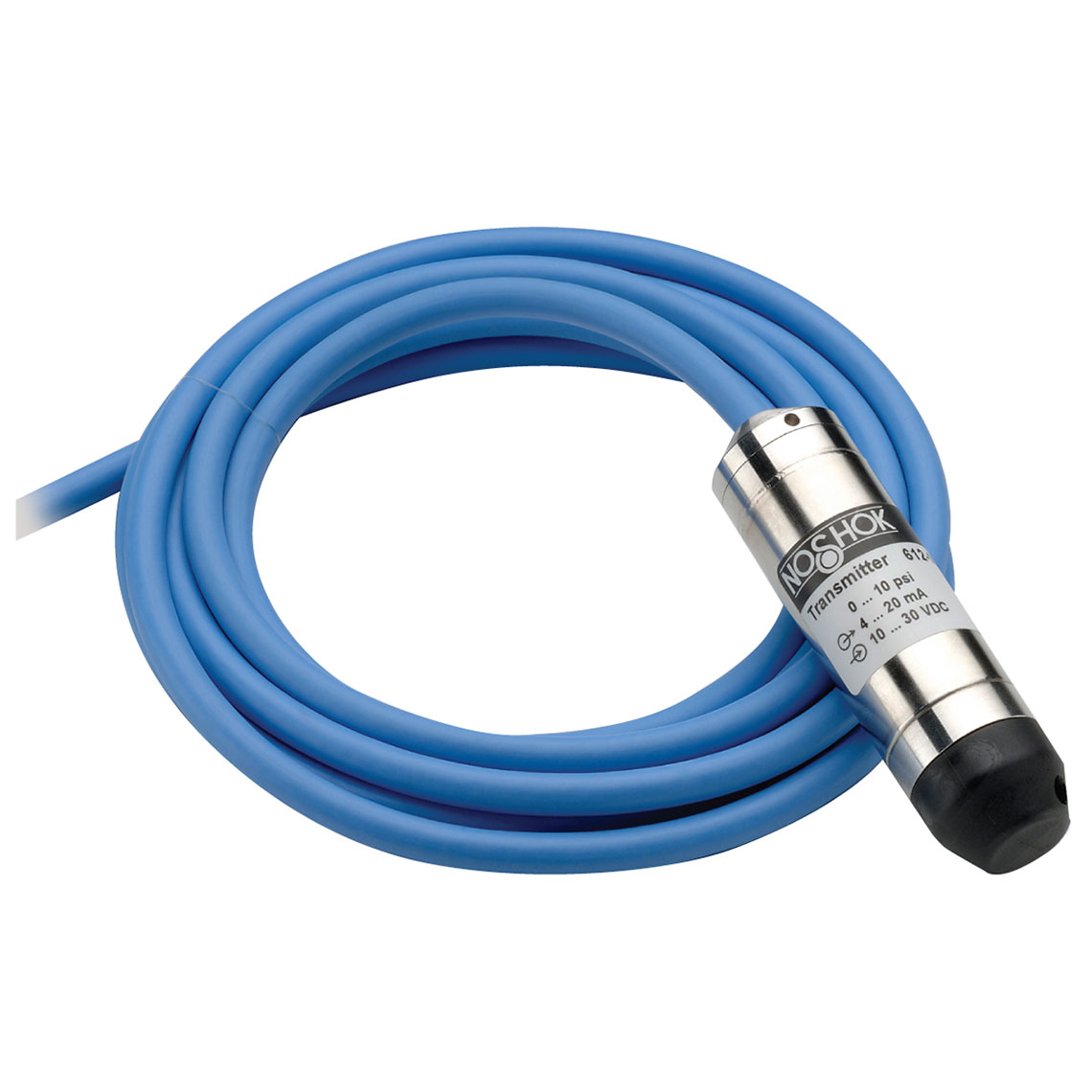

NOSHOK® Submersible Pressure Transmitter, 0 psig to 2 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 4 ft PUR Cable, Desiccant Cartridge

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 612-2-1-1-N-4-DC
  • MPN: 612-2-1-1-N-4-DC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Submersible Pressure Transmitter, 0 psig to 2 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 4 ft PUR Cable, Desiccant Cartridge

California residents see Prop 65 WARNINGS

Series      :      612 Series Pressure Transmitters
Connection Type      :      Nosecone
Pressure Low      :      0 PSI
Pressure High      :      2 PSI
Connection Material      :      316 Stainless Steel
Operating Temperature Low      :      -22 deg F
Operating Temperature Low      :      -30 deg C
Operating Temperature High      :      175 deg F
Operating Temperature High      :      80 deg C
Media Temperature Low      :      -10 deg C
Media Temperature Low      :      14 deg F
Media Temperature High      :      122 deg F
Media Temperature High      :      50 deg C
Housing Material      :      316 Stainless Steel
Industry Standards      :      European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Request for Information (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Output Signal      :      4 mA to 20 mA, 2-wire
Electrical Protection      :      Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Service Life      :      < 100,000,000 load cycles
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6      :      15 g
Shock According to International Electrotechnical Commission (IEC) 60068      :      100 g
Stability      :      = ± 0.2% full scale for 1 year, non-accumulating
Compensated Temperature Low      :      0 deg C
Compensated Temperature Low      :      32 deg F
Compensated Temperature High      :      122 deg F
Compensated Temperature High      :      50 deg C
Load Limitations      :      = (VPower-10)/0.020 Amp for 4 mA to 20 mA = 10,000 O for 0 Vdc to 10 Vdc, 3-wire = 5,000 O for 0 Vdc to 5 Vdc, 3-wire
Cover Ring Material      :      Polished Brass
Response Time      :      =1 ms
