NOSHOK® 820-1-1D-48-32/300-48-080-6
Send Print
  1. pin-int

NOSHOK® 820-1-1D-48-32/300-48-080-6

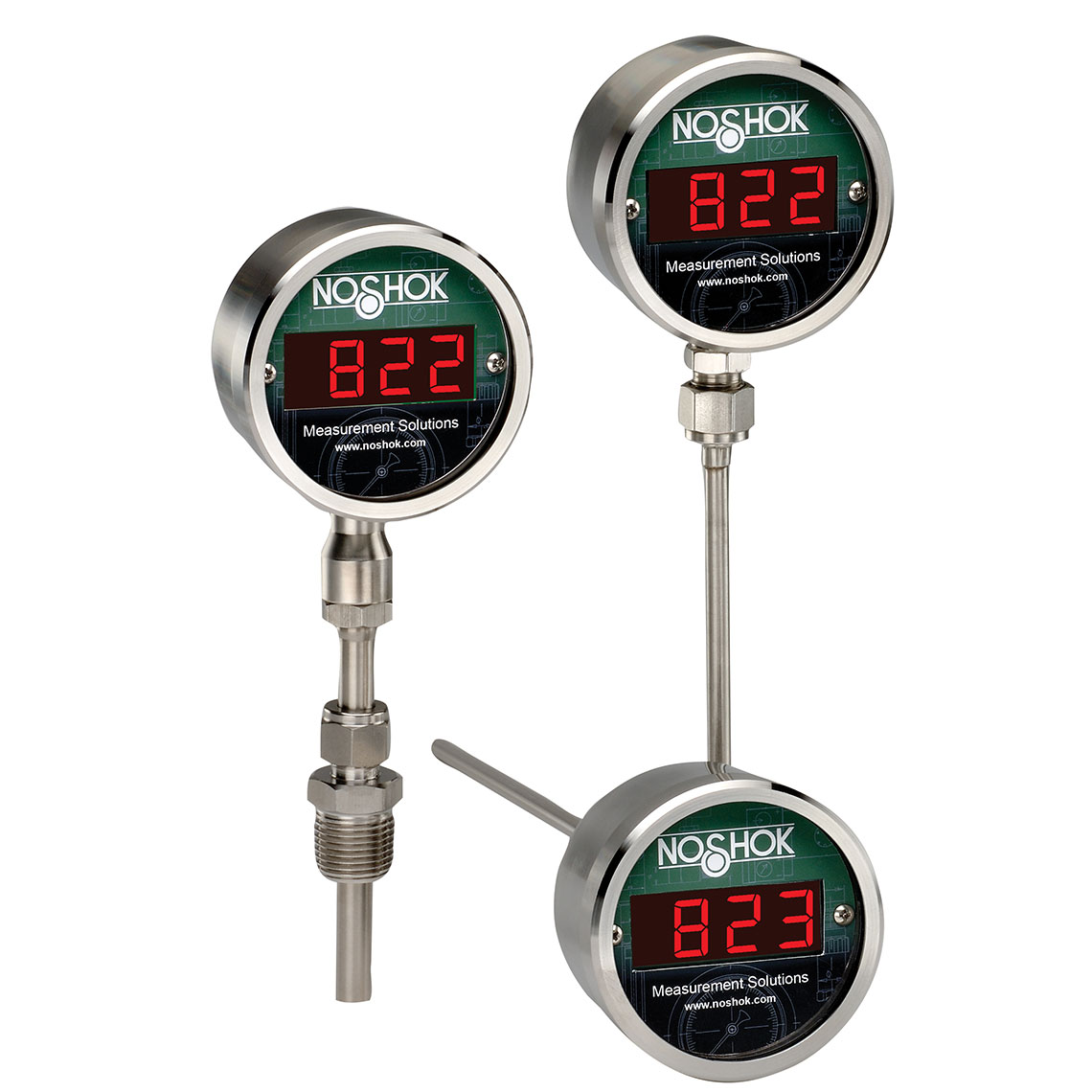

NOSHOK® Digital Temperature Indicator, Bottom Connection, = 0.22% Full Scale Accuracy, 4-20 mA, Downscale Burnout, 1/2 NPT Sliding Compression, M 12 X 1 (5 pin) Conn, 8 Stem, 6 Immersion, 6mm Diameter

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 820-1-1D-48-32/300-48-080-6
  • MPN: 820-1-1D-48-32/300-48-080-6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Digital Temperature Indicator, Bottom Connection, = 0.22% Full Scale Accuracy, 4-20 mA, Downscale Burnout, 1/2 NPT Sliding Compression, M 12 X 1 (5 pin) Conn, 8 Stem, 6 Immersion, 6mm Diameter

California residents see Prop 65 WARNINGS

Connection Size      :      1/2 in
Series      :      820 Series Thermometers
Connection Type      :      National Pipe Thread (NPT)
Output Signal      :      4 mA to 20 mA
Electrical Connection      :      M12 x 1 (5-pin)
Connection Mount      :      Bottom
Ambient Temperature Low      :      -40 deg C
Ambient Temperature Low      :      -40 deg F
Ambient Temperature High      :      176 deg F
Ambient Temperature High      :      80 deg C
Operating Temperature Low      :      32 deg F
Operating Temperature High      :      300 deg F
Housing Material      :      316 Stainless Steel
Cover Ring Material      :      Polished Brass
Thermowells      :      Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
