The wrapped classical section Hi-Power® V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power® belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load. Featuring a composite, multi-purpose construction, Gates® Hi-Power® II belts resist oil, heat, ozone, sunlight, weather and aging. We've even engineered the EPDM belt material to combat self-igniting, meaning your belt won't catch fire from heat build-up, even with severe slippage.

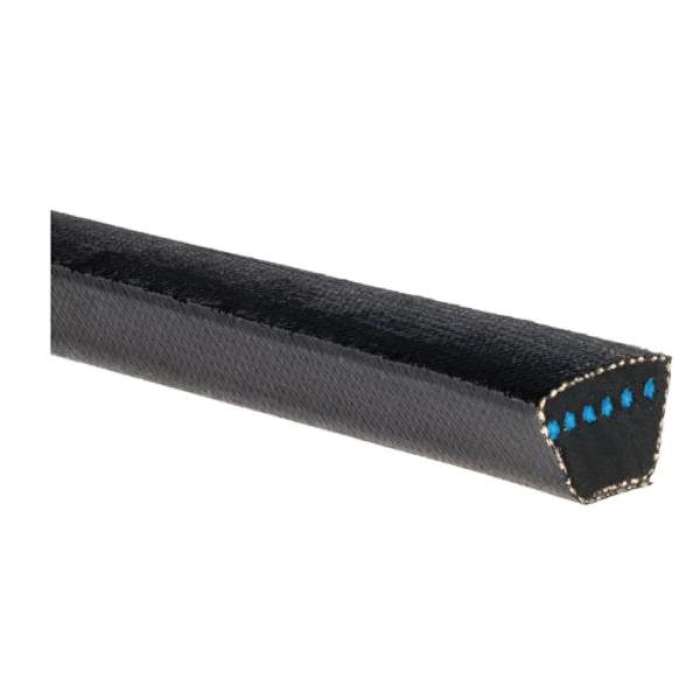

Gates® V-Belt, 9003 Series, B V-Belt Section, 64.1 in Outer Circumference, 1 Ribs, Wrapped Construction, 0.68 in Width, 0.42 in Thickness, EPDM, Black, -22 to 140 deg F, For Use With: Multi-Duty® Sheaves
| Product Type | : | V-Belt |
| Series | : | 9003 Series |
| V-Belt Section | : | B |
| Outer Circumference | : | 64.1 in |
| Number of Ribs | : | 1 |
| Construction | : | Wrapped |
| Width | : | 0.68 in |
| Thickness | : | 0.42 in |
| Material | : | EPDM |
| Color | : | Black |
| Temperature Rating | : | -22 to 140 deg F |
| For Use With | : | Multi-Duty® Sheaves |
- Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
- The vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
- The Flex-Weave™ oil and heat-resistant cover protects the belt core from the toughest environments
- Flex-bonded cords are strongly bonded to the body of the belt, resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
- The Flex-Weave™ cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX
- Belt edge is machined for even sheave groove contact, resulting in smoother running and less slip and wear
- Match system, all sizes meet Gates® UNISET tolerances, they can be installed without matching
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- High-quality rubber compound protects the belt against heat, ozone and sunlight
- The belt will not catch fire from heat build-up, even with severe slippage
- Long belt life reducing replacement and maintenance costs
- Excellent performance/cost ratio
- Reliability and efficiency
