Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear, and increased belt life. Fully wrapped construction, eliminates debris and dust concerns found in competitive double notch belts.

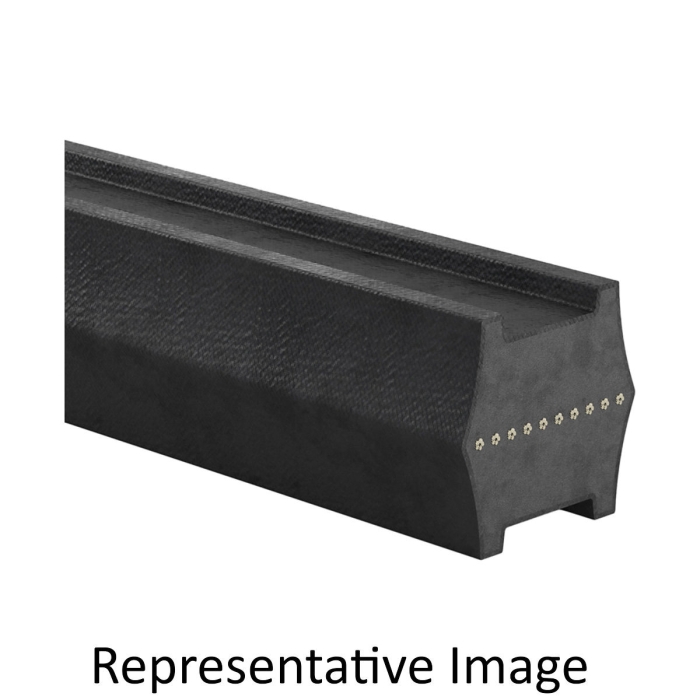

Gates® Double V-Belt, CC V-Belt Section, 112 in Outer Circumference, 1 Ribs, Banded Construction, 0.87 in Width, 0.71 in Thickness, Polyester/SBR, Black, -22 to 140 deg F, For Use With: Multi-Duty® Sheaves, 15 PK Packaging Quantity
| Product Type | : | Double V-Belt |
| V-Belt Section | : | CC |
| Outer Circumference | : | 112 in |
| Number of Ribs | : | 1 |
| Construction | : | Banded |
| Width | : | 0.87 in |
| Thickness | : | 0.71 in |
| Material | : | Polyester/SBR |
| Color | : | Black |
| Temperature Rating | : | -22 to 140 deg F |
| For Use With | : | Multi-Duty® Sheaves |
| Packaging Quantity | : | 15 PK |
- The Flex-Weave™ cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
- Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX
- Match system, all sizes meet Gates® UNISET tolerances, they can be installed without matching
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Dubl-V belts are available in AA, BB, CC and DD cross sections
- Hi-Power® Dubl-V DD not included in UNISET tolerances
- Temperature range -30 to +60 deg C (-22 to +140 deg F)
- Lower transmission from both sides of the belt
- Suitable for dirty/dusty environments
