Gates® 90042104

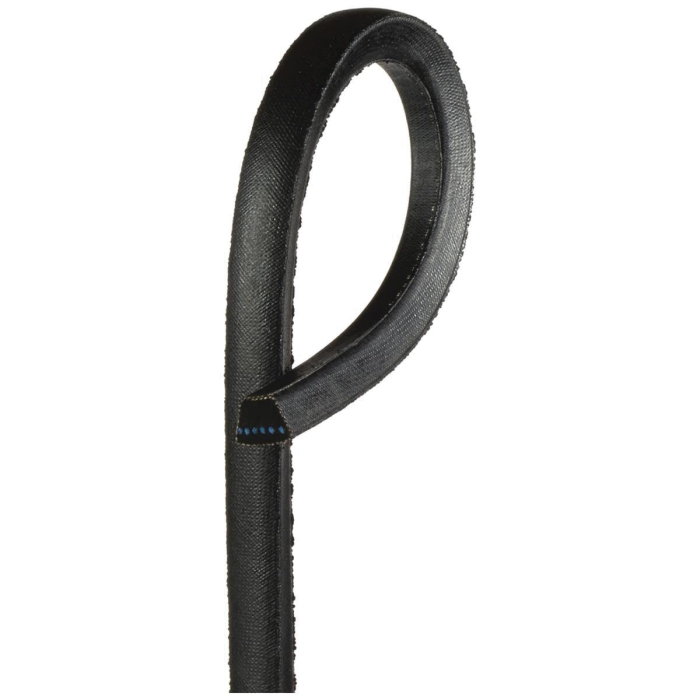

Gates® Hi-Power® II 9004 Series 90042104 V-Belt, C, 108 in, 1 -Rib, 0.88 in W, 0.55 in Thick, SBR

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT C104
  • MPN: 90042104
  • UPC: 072053310139
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

The wrapped classical section Hi-Power® II V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power® II belt provides superior strength to prevent dishing and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Gates® V-Belt, 9004 Series, C V-Belt Section, 108 in Outer Circumference, 1 Ribs, Banded Construction, 0.88 in Width, 0.55 in Thickness, SBR, Black, -22 to 140 deg F

Product Type      :      V-Belt
Series      :      9004 Series
V-Belt Section      :      C
Outer Circumference      :      108 in
Number of Ribs      :      1
Construction      :      Banded
Width      :      0.88 in
Thickness      :      0.55 in
Material      :      SBR
Color      :      Black
Temperature Rating      :      -22 to 140 deg F
  • Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
  • The vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
  • The Flex-Weave™ oil and heat-resistant cover protects the belt core from the toughest environments
  • All sizes meet Gates® V80® system matching tolerances
  • Flex-bonded cords are strongly bonded to the body of the belt, resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
  • The Flex-Weave™ cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
  • Belt edge is machined for even sheave groove contact, resulting in smoother running and less slip and wear
  • All sizes meet Gates® UNISET tolerances, they can be installed without matching
  • Meets RMA oil and heat-resistant standards and static conductivity requirements
  • High-quality rubber compound protects the belt against heat, ozone and sunlight
  • The belt will not catch fire from heat build-up, even with severe slippage
  • Long belt life reducing replacement and maintenance costs
  • Excellent performance/cost ratio
  • Reliability and efficiency
