Gates® 90932154

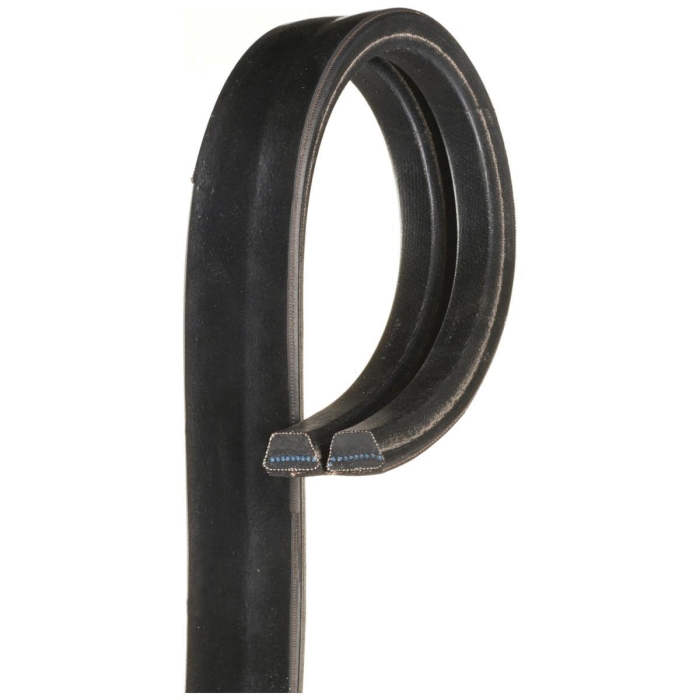

The wrapped classical section Hi-Power® V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power® belt provides superior strength to prevent dishing and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Gates® V-Belt, 9093 Series, B V-Belt Section, 157 in Outer Circumference, 2 Ribs, Banded Construction, 1.41 in Width, 0.47 in Thickness, SBR, Black, -22 to 140 deg F

• Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
• The vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
• The Flex-Weave™ oil and heat-resistant cover protects the belt core from the toughest environments
• All sizes meet Gates® V80® system matching tolerances
• Flex-bonded cords are strongly bonded to the body of the belt, resulting in equal load distribution and the absorption of bending stress without cord deterioration
• The Flex-Weave™ cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
• Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
• Gates® curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
• Savings in drive space and weight due to high transmission efficiency
• High stability and smooth running on the toughest drives
• Important design economies possible
• Better resistance to vibrations

• Specification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_90932154_Specification_Sheet.pdf
