Gates® 94120280
Send Print
  1. pin-int

Gates® 94120280

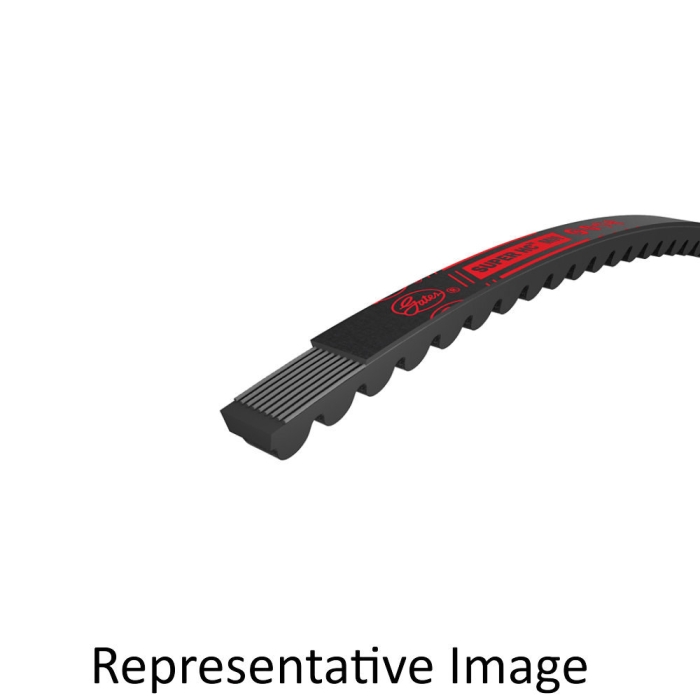

Gates® Super HC™ 94120280 Molded Notch V-Belt, 3V, 28 in, 1 -Rib, 0.39 in W, 8 mm Thick, Ethylene Elastomer/Polyester

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GATV 3VX280
  • MPN: 94120280
  • UPC: 072053266726
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Flex-bonded tensile cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads.

Gates® Molded Notch V-Belt, 3Vx V-Belt Section, 28 in Outer Circumference, 1 Ribs, Bandless Construction, 0.39 in Width, 8 mm Thickness, Ethylene Elastomer/Polyester, Black, -60 to 250 deg F, For Use With: Super HC® Sheaves, 10 PK Packaging Quantity

Product Type      :      Molded Notch V-Belt
V-Belt Section      :      3Vx
Outer Circumference      :      28 in
Number of Ribs      :      1
Construction      :      Bandless
Width      :      0.39 in
Thickness      :      8 mm
Material      :      Ethylene Elastomer/Polyester
Color      :      Black
Temperature Rating      :      -60 to 250 deg F
For Use With      :      Super HC® Sheaves
Packaging Quantity      :      10 PK
  • Machined belt edge provides maximum sheave groove contact for even wear and extended belt life
  • Proprietary Flex-Weave™ cover protects the belt's interior from oil, contaminants, and heat
  • Promotes smoother, quieter operation, with less slippage and belt wear
  • Elastomeric compound protects the belt against heat, ozone and sunlight
  • The belt will not catch fire from heat build-up, even with severe slippage
  • Designed for high horsepower, space-constrained applications
  • Improved belt life reducing expensive maintenance time
  • Optimally constructed for small sheave diameter drives
  • The molded notch pattern also reduces noise
  • Patented ethylene material construction
  • Temperature range -60 to +250 deg F (-50 to +121 deg C)
  • More compact design compared to classical section V-belts
  • Cost and space savings by reducing size of pulleys, bearings, guards and mounts
  • Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX
  • REACH compliant and suitable for ROHS 2 applications
