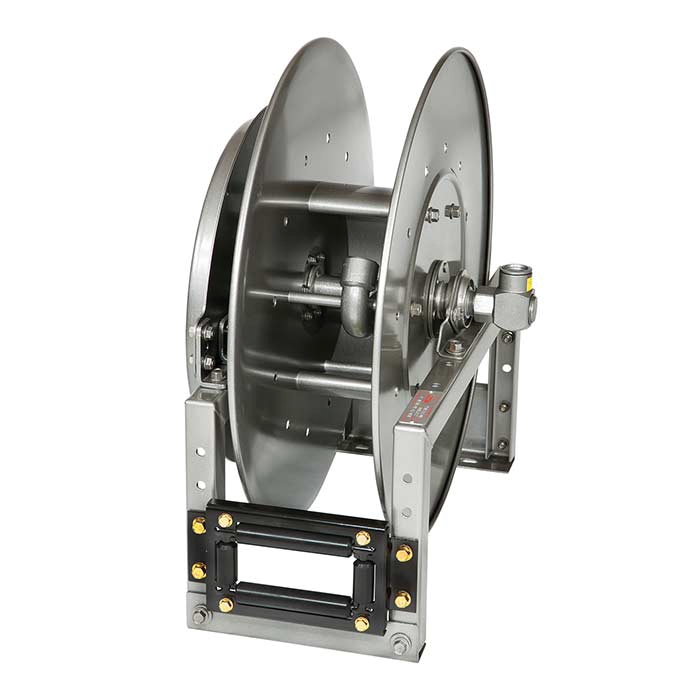

Hannay Reels® Hose Reel, Series: 800, 50 or 70 ft Length Hose, Connection Type: FNPT, 3/4 or 1 in Hose Inside Diameter, Inlet Size: 1 in FNPT, Outlet Size: 1 in FNPT, Winding Method: Spring Rewind, 2000 psi, Red, 15-1/2 in Width, 25.88 in Height, -40 to 250 deg F, Dimensions: 26.12 in L
| Product Type | : | Hose Reel |
| Outlet Size | : | 1 in FNPT |
| Winding Method | : | Spring Rewind |
| Pressure Rating | : | 2000 psi |
| Color | : | Red |
| Width | : | 15-1/2 in |
| Series | : | 800 |
| Height | : | 25.88 in |
| Temperature Rating | : | -40 to 250 deg F |
| Dimensions | : | 26.12 in L |
| Hose Length | : | 50 or 70 ft |
| Connection Type | : | FNPT |
| Hose Inside Diameter | : | 3/4 or 1 in |
| Inlet Size | : | 1 in FNPT |
- Roll-formed channel frame for heavy-duty applications
- Non-sparking ratchet assembly
- Declutching arbor to prevent damage from reverse winding
- Standard inlet - 90 deg balanced pressure swivel joint, 1 in female NPT threads
Applications: Agriculture, air, construction, fuel dispensing, grounds maintenance, lawn care, industrial, land drilling, offshore drilling, maritime, mining, sewer, waste, waste oil evacuation, transportation, utilities, processing, spray and water
Catalog/Catalog Cut Sheet
