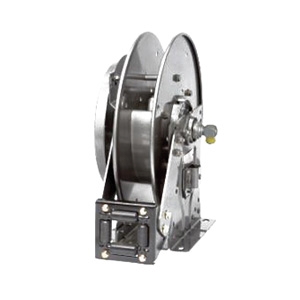

Hannay Reels® N716-17-18-8L-FR 47-11

Hannay Reels® N700 Hose Reel, 1/2 in ID, 50 ft L, 3000 psi

  • Manufacturers: Hannay Reels
  • Brand Name: Hannay Reels®
  • Tipco Part No: HAN716-17-18-8L-FR 47-11
  • MPN: N716-17-18-8L-FR 47-11
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Hannay Reels® Hose Reel, N700 Series, 50 ft Length Hose, 1/2 in Hose Inside Diameter, Inlet Size: 1/2 in, Outlet Size: 1/2 in, Winding Method: Spring, -60 to 250 deg F, 3000 psi, Dimensions: 17.38 in H x 18 in W x 11-1/4 in D

Product Type      :      Hose Reel
Outlet Size      :      1/2 in
Winding Method      :      Spring
Pressure Rating      :      3000 psi
Series      :      N700
Temperature Rating      :      -60 to 250 deg F
Dimensions      :      17.38 in H x 18 in W x 11-1/4 in D
Hose Length      :      50 ft
Hose Inside Diameter      :      1/2 in
Inlet Size      :      1/2 in
  • Standard N Series has a narrow frame and compact mounting base
  • Non-sparking ratchet assembly
  • Declutching arbor to prevent damage from reverse winding
  • 90 deg balanced pressure swivel joint, 1/2 in FNPT threads standard inlet
  • 1/2 in FNPT threads standard outlet
  • Standard pressures to 3000 psi (207 bar)
  • 4-way roller assembly
  • Swivel joint is standard on the right, swivel joint is standard on the left

Applications: For lubrication, air, water, steam, assembly operations, washdown, air tools, high pressure, general industrial

  • pdfCatalog/Catalog Cut Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Hannay_Reels_N716-17-18-8L-FR_47-11_CAT.pdf
