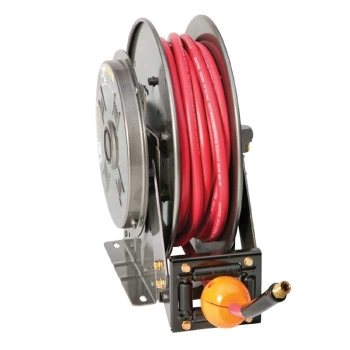

Hannay Reels® Hose Reel, N700 Series, 50 ft Length Hose, 1/2 in Hose Inside Diameter, Connection Type: FPT, Inlet Size: 1/2 in FPT Swivel, Outlet Size: 1/2 in FPT, Winding Method: Spring Rewind, -60 to 250 deg F, 280 psi, Dimensions: 18 in L x 11.25 in W x 17.38 in H
| Product Type | : | Hose Reel |
| Outlet Size | : | 1/2 in FPT |
| Winding Method | : | Spring Rewind |
| Pressure Rating | : | 280 psi |
| Series | : | N700 |
| Temperature Rating | : | -60 to 250 deg F |
| Dimensions | : | 18 in L x 11.25 in W x 17.38 in H |
| Hose Length | : | 50 ft |
| Connection Type | : | FPT |
| Hose Inside Diameter | : | 1/2 in |
| Inlet Size | : | 1/2 in FPT Swivel |
- Standard N Series has a narrow frame and compact mounting base
- Non-sparking ratchet assembly
- Declutching arbor to prevent damage from reverse winding
- 90 deg balanced pressure swivel joint, 1/2 in FNPT threads standard inlet
- 1/2 in FNPT threads standard outlet
- Four-way roller assembly
- Single textile braid reinforced synthetic rubber hose and HS-35 hose stop installed
Applications: Air, agriculture, air tools, assembly operations, construction, general industrial applications, grounds maintenance, high pressure, industrial, land drilling, lawn care, lubrication, marine, mining, offshore drilling, pressure wash, processing, sewer, spray, steam, transportation, utilities, washdown, waste, water
