Hannay Reels® N716-23-24-15.5J-SR
Send Print
  1. pin-int

Hannay Reels® N716-23-24-15.5J-SR

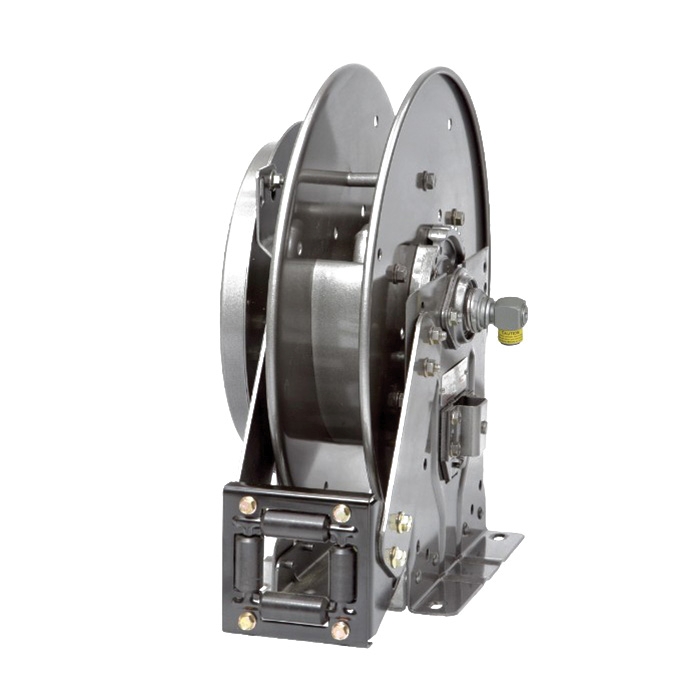

Hannay Reels® N700 Hose Reel, 1/2 in ID x 65 ft, 3000 psi

  • Manufacturers: Hannay Reels
  • Brand Name: Hannay Reels®
  • Tipco Part No: HAN N716-23-24-15.5J-SR
  • MPN: N716-23-24-15.5J-SR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Hannay Reels® Hose Reel, N700 Series, 65 ft Length Hose, 1/2 in Hose Inside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Winding Method: Spring Rewind, -60 to 250 deg F, 3000 psi, Dimensions: 24 in L x 23-3/4 in W x 11-1/4 in H

Product Type      :      Hose Reel
Outlet Size      :      1/2 in FPT
Winding Method      :      Spring Rewind
Pressure Rating      :      3000 psi
Series      :      N700
Temperature Rating      :      -60 to 250 deg F
Dimensions      :      24 in L x 23-3/4 in W x 11-1/4 in H
Hose Length      :      65 ft
Hose Inside Diameter      :      1/2 in
Inlet Size      :      1/2 in FPT
  • Standard N Series has a narrow frame and compact mounting base
  • Non-sparking ratchet assembly
  • Declutching arbor to prevent damage from reverse winding
  • SR roller positions
