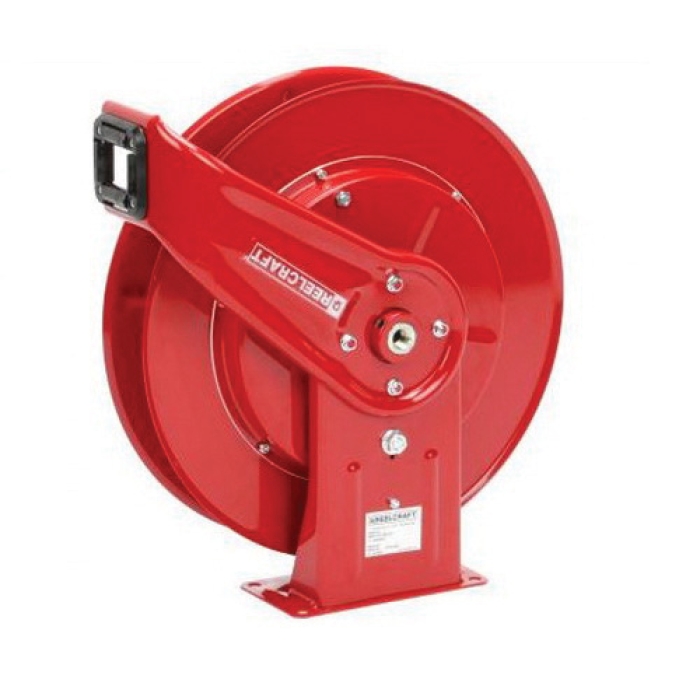

Reelcraft® 7600 OLP

Reelcraft® 7000 Red Carbon Steel Heavy-Duty Low Pressure Air Hose Reel, 3/8 in ID x 50 ft, 500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE 7600 OLP
  • MPN: 7600 OLP
  • UPC: 699567001188
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Heavy-Duty Low Pressure Air Hose Reel, 7000 Series, 50 ft Length Hose, 3/8 in Hose Inside Diameter, 0.6 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/4 in MPT, Winding Method: Spring Retractable, Carbon Steel, Finish: Powder-Coated, Red, 150 deg F, 500 psi, Dimensions: 20-1/4 in L x 19-3/4 in W x 7 in H

California residents see Prop 65 WARNINGS

Product Type      :      Air Hose Reel
Outlet Size      :      1/4 in MPT
Winding Method      :      Spring Retractable
Pressure Rating      :      500 psi
Finish      :      Powder-Coated
Color      :      Red
Series      :      7000
Temperature Rating      :      150 deg F
Dimensions      :      20-1/4 in L x 19-3/4 in W x 7 in H
Hose Length      :      50 ft
Hose Inside Diameter      :      3/8 in
Material      :      Carbon Steel
Hose Outside Diameter      :      0.6 in
Inlet Size      :      1/2 in FPT

Reelcraft®'s Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to seven positions.

  • Reinforced steel - the steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
  • Open style

Applications: For industrial, automotive service centers, transmission shops, fleet maintenance facilities, pneumatic tools, aircraft maintenance, tire stores, agriculture, service trucks and washdown
