Reelcraft® 7800 OLP REE 7800 OLP | Tipco Technologies
Reelcraft® 7800 OLP
Send Print
  1. pin-int

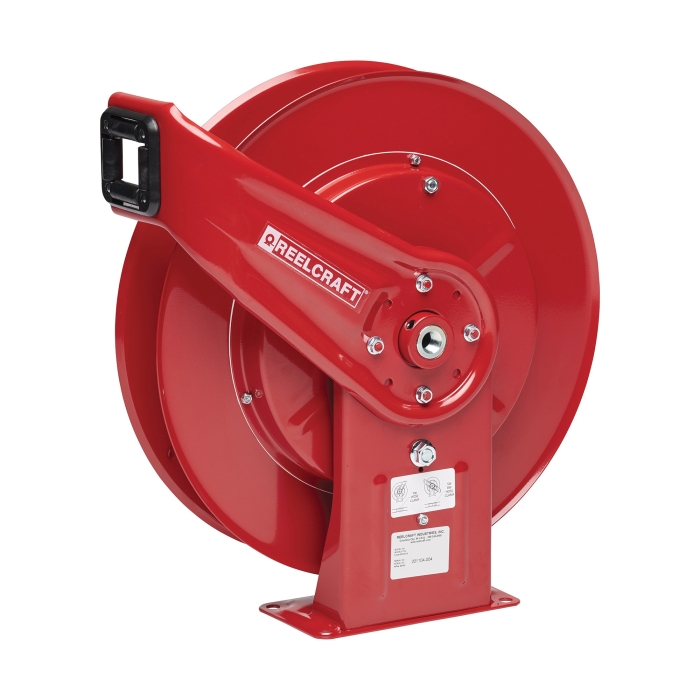

Reelcraft® 7800 OLP

Reelcraft® 7000 Red Steel Heavy-Duty Low Pressure Air and Water Hose Reel, 1/2 in ID x 50 ft, 500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE 7800 OLP
  • MPN: 7800 OLP
  • UPC: 699567001195
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Heavy-Duty Low Pressure Air and Water Hose Reel, 7000 Series, 50 ft Length Hose, 1/2 in Hose Inside Diameter, 3/4 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 210 deg F, 500 psi, Dimensions: 20-1/4 in L x 19-3/4 in W x 7 in H

California residents see Prop 65 WARNINGS

Product Type      :      Air and Water Hose Reel
Outlet Size      :      1/2 in FPT
Winding Method      :      Spring Retractable
Pressure Rating      :      500 psi
Finish      :      Powder-Coated
Color      :      Red
Series      :      7000
Temperature Rating      :      210 deg F
Dimensions      :      20-1/4 in L x 19-3/4 in W x 7 in H
Hose Length      :      50 ft
Hose Inside Diameter      :      1/2 in
Material      :      Steel
Hose Outside Diameter      :      3/4 in
Inlet Size      :      1/2 in FPT

Reelcraft® Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The basic reel without hose can be used for air, water or oil. Consult Reelcraft for other products and hoses. Guide arm adjusts to seven positions.

  • The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Quality finish and corrosion-resistant - individually powder-coated components offer the maximum protection from premature corrosion
  • Made in USA
