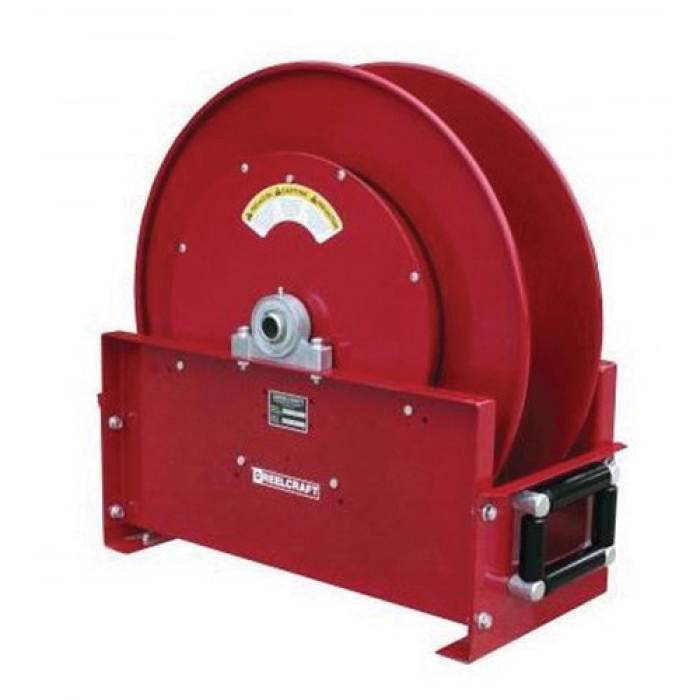

Reelcraft® D9200 OLPBW
Reelcraft® D9000 Red Steel Ultimate-Duty Low Pressure Bottom Wind Air and Water Hose Reel, 1/2 in ID x 75 ft, 500 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE D9200 OLPBW
- MPN: D9200 OLPBW
- UPC: 699567001812
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Ultimate-Duty Low Pressure Bottom Wind Air and Water Hose Reel, D9000 Series, 75 ft Length Hose, 1/2 in Hose Inside Diameter, 3/4 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Steel, Finish: Powder-Coated, Red, 210 deg F, 500 psi, Dimensions: 26-3/8 in L x 26-1/4 in W x 12 in H, Includes: Non-Greasable Bushings/Bearings
California residents see Prop 65 WARNINGS
| Product Type | : | Air and Water Hose Reel |
| Outlet Size | : | 1/2 in FPT |
| Pressure Rating | : | 500 psi |
| Finish | : | Powder-Coated |
| Color | : | Red |
| Series | : | D9000 |
| Includes | : | Non-Greasable Bushings/Bearings |
| Temperature Rating | : | 210 deg F |
| Dimensions | : | 26-3/8 in L x 26-1/4 in W x 12 in H |
| Hose Length | : | 75 ft |
| Hose Inside Diameter | : | 1/2 in |
| Material | : | Steel |
| Hose Outside Diameter | : | 3/4 in |
| Inlet Size | : | 1/2 in FPT |
Reelcraft® Series D9000 hose reels offer the greatest amount of stability. Ideal for permanent service or plant work areas. A durable baked-on powder-coat finish produces a rugged corrosion-resistant product.
- The full width frame has the greatest amount of mounting area and overall strength of reels within its class
- The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
- Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
- Reels are shipped in the bottom wind position with right hand inlet
- Made in USA
Applications: For a wide variety of heavy-duty application
Catalog/Catalog Cut Sheet
