Reelcraft® D9399 OLPBW REE D9399 OLPBW | Tipco Technologies
Reelcraft® D9399 OLPBW
Send Print
  1. pin-int

Reelcraft® D9399 OLPBW

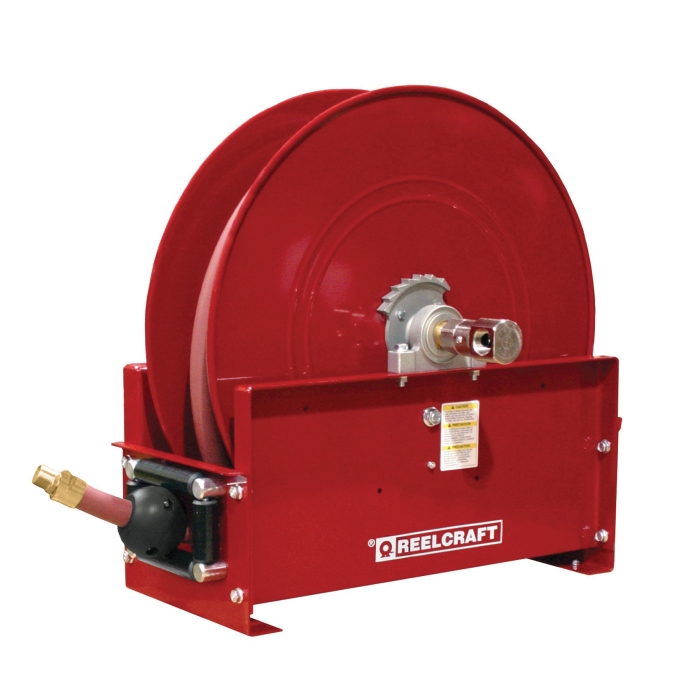

Reelcraft® D9000 Red Steel Ultimate-Duty Low Pressure Bottom Wind Air and Water Hose Reel, 3/4 in ID x 100 ft, 250 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE D9399 OLPBW
  • MPN: D9399 OLPBW
  • UPC: 699567006152
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Ultimate-Duty Low Pressure Bottom Wind Air and Water Hose Reel, D9000 Series, 100 ft Length Hose, 3/4 in Hose Inside Diameter, 1.075 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Winding Method: Spring Rewind, Steel, Finish: Powder-Coated, Red, 150 deg F, 250 psi, Dimensions: 26.374 in L x 26.25 in W x 12 in H, Includes: Non-Greasable Bushings/Bearings and Hose

California residents see Prop 65 WARNINGS

Product Type      :      Air and Water Hose Reel
Outlet Size      :      3/4 in FPT
Winding Method      :      Spring Rewind
Pressure Rating      :      250 psi
Finish      :      Powder-Coated
Color      :      Red
Series      :      D9000
Includes      :      Non-Greasable Bushings/Bearings and Hose
Temperature Rating      :      150 deg F
Dimensions      :      26.374 in L x 26.25 in W x 12 in H
Hose Length      :      100 ft
Hose Inside Diameter      :      3/4 in
Material      :      Steel
Hose Outside Diameter      :      1.075 in
Inlet Size      :      3/4 in FPT

Reelcraft® Series D9000 hose reels offer the greatest amount of stability. Ideal for permanent service or plant work areas. A durable baked-on powder-coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.

  • The full width frame has the greatest amount of mounting area and overall strength of reels within its class
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
  • Reels are shipped in the bottom wind position with right hand inlet
  • Made in USA
