Reelcraft® DP5650 OLP

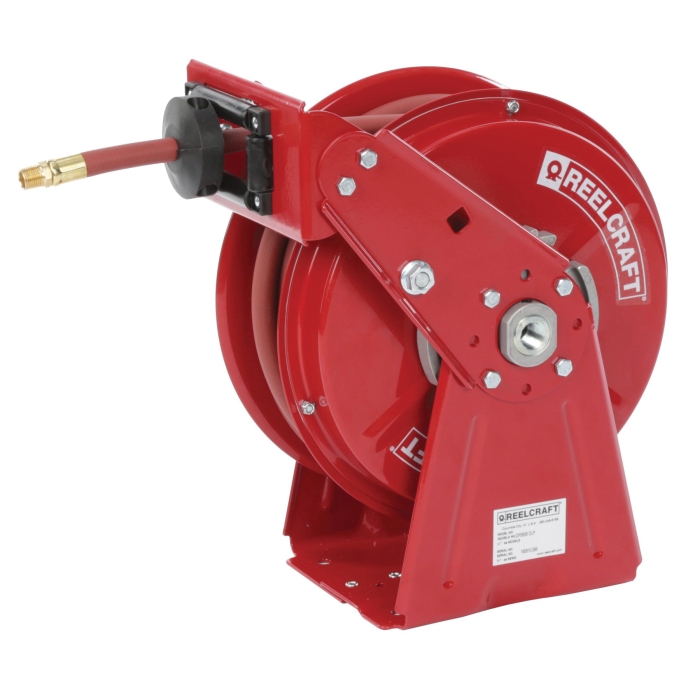

Reelcraft® DP5000 Red Carbon Steel Compact Low Pressure Dual Pedestal Hose Reel, 3/8 in ID x 50 ft, 300 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE DP5650 OLP
  • MPN: DP5650 OLP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Compact Low Pressure Dual Pedestal Hose Reel, DP5000 Series, 50 ft Length Hose, 3/8 in Hose Inside Diameter, 0.6 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/4 in MPT, Winding Method: Spring Retractable, Carbon Steel, Finish: Powder-Coated, Red, 150 deg F, 300 psi, Dimensions: 16-3/8 in L x 14-3/8 in W x 9 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Product Type      :      Pedestal Hose Reel
Outlet Size      :      1/4 in MPT
Winding Method      :      Spring Retractable
Pressure Rating      :      300 psi
Finish      :      Powder-Coated
Color      :      Red
Series      :      DP5000
Includes      :      Hose
Temperature Rating      :      150 deg F
Dimensions      :      16-3/8 in L x 14-3/8 in W x 9 in H
Hose Length      :      50 ft
Hose Inside Diameter      :      3/8 in
Material      :      Carbon Steel
Hose Outside Diameter      :      0.6 in
Inlet Size      :      1/2 in FPT

Reelcraft®'s new compact dual pedestal Series DP5000 features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stand up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. Superbly engineered dual pedestal base and guide arm are structurally reinforced. All steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.

  • Reinforced steel - steel guide arm and dual pedestal base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts
  • Superior latch spring design - the torsions style latch spring life far exceeds that of conventional coil springs
  • Long life drive spring - declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
  • High-quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Open style

Applications: For heavy-duty applications
