Reelcraft® DP7400 OLP REE DP7400 OLP | Tipco Technologies
Reelcraft® DP7400 OLP
Send Print
  1. pin-int

Reelcraft® DP7400 OLP

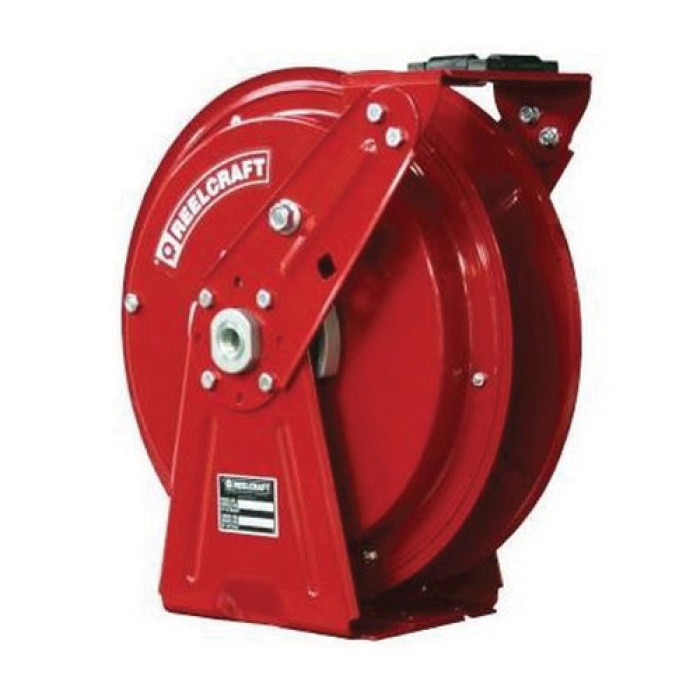

Reelcraft® DP7000 Red Steel Compact Dual Pedestal Low Pressure Air and Water Hose Reel, 1/4 in ID x 50 ft L, 500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE DP7400 OLP
  • MPN: DP7400 OLP
  • UPC: 699567005964
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Compact Dual Pedestal Low Pressure Air and Water Hose Reel, DP7000 Series, 50 ft Length Hose, 1/4 in Hose Inside Diameter, 0.475 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 3/8 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 210 deg F, 500 psi, Dimensions: 17 in L x 16-1/2 in W x 8 in H

California residents see Prop 65 WARNINGS

Product Type      :      Air and Water Hose Reel
Outlet Size      :      3/8 in FPT
Winding Method      :      Spring Retractable
Pressure Rating      :      500 psi
Finish      :      Powder-Coated
Color      :      Red
Series      :      DP7000
Temperature Rating      :      210 deg F
Dimensions      :      17 in L x 16-1/2 in W x 8 in H
Hose Length      :      50 ft
Hose Inside Diameter      :      1/4 in
Material      :      Steel
Hose Outside Diameter      :      0.475 in
Inlet Size      :      1/2 in FPT

Reelcraft® new compact dual pedestal Series DP5000 features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stand up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. Superbly engineered dual pedestal base and guide arm are structurally reinforced. All steel construction and a baked-on powder-coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.

  • Steel guide arm and dual pedestal base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts
  • The torsions style latch spring life far exceeds that of conventional coil springs
  • Declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
  • High-quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Made in USA
