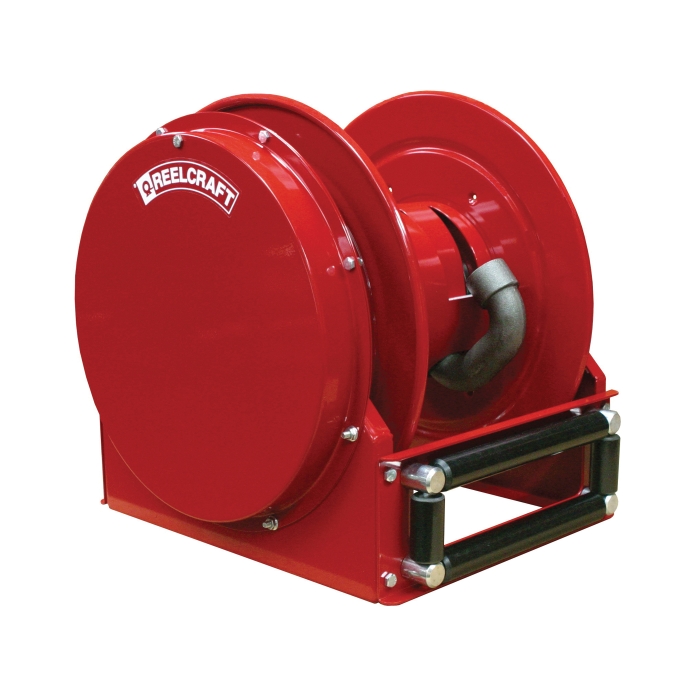

Reelcraft® SD14000 OLP
Reelcraft® SD10000 Steel Ultimate-Duty Low Pressure Air and Water Hose Reel, 1 in ID x 35 ft, 500 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE SD14000 OLP
- MPN: SD14000 OLP
- UPC: 699567008668
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Ultimate-Duty Low Pressure Air and Water Hose Reel, SD10000 Series, 35 ft Length Hose, 1 in Hose Inside Diameter, 1-3/8 in Hose Outside Diameter, Inlet Size: 1 in FPT, Outlet Size: 1 in FPT, Winding Method: Spring Retractable, Steel, 210 deg F, 500 psi, Dimensions: 18-1/4 in L x 19-1/8 in W x 18-3/4 in H
California residents see Prop 65 WARNINGS
| Product Type | : | Air and Water Hose Reel |
| Outlet Size | : | 1 in FPT |
| Winding Method | : | Spring Retractable |
| Pressure Rating | : | 500 psi |
| Series | : | SD10000 |
| Temperature Rating | : | 210 deg F |
| Dimensions | : | 18-1/4 in L x 19-1/8 in W x 18-3/4 in H |
| Hose Length | : | 35 ft |
| Hose Inside Diameter | : | 1 in |
| Material | : | Steel |
| Hose Outside Diameter | : | 1-3/8 in |
| Inlet Size | : | 1 in FPT |
Reelcraft® Series SD10000 hose reels are designed to facilitate larger diameter 3/4 and 1 in hose up to 50 ft. They feature a high-quality external drive spring and a heavy-gauge all-bolted together frame. This is the most compact reel in its class, making it ideal for mounting in truck cabinets or other areas where space is limited.
- High impact UHMW composite roller guides have outstanding wear and corrosion resistance
- Containerized external drive spring is easily and safely serviced
- Ductile iron fluid path is strong and reliable
- Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life
- Made in USA
Catalog/Catalog Cut Sheet
