Hannay Reels® N515-19-20-10.5J H8M
Send Print
  1. pin-int

Hannay Reels® N515-19-20-10.5J H8M

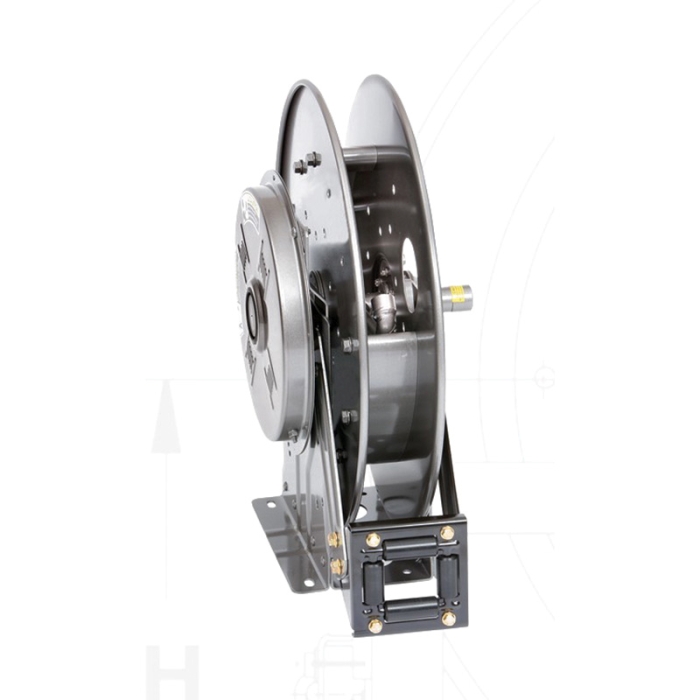

Hannay Reels® N500 Graphite Hose Reel, 3/8 in ID x 50 ft, 10000 psi

  • Manufacturers: Hannay Reels
  • Brand Name: Hannay Reels®
  • Tipco Part No: HAN 45-18
  • MPN: N515-19-20-10.5J H8M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Hannay Reels® Hose Reel, N500 Series, 50 ft Length Hose, 3/8 in Hose Inside Diameter, Inlet Size: 1/4 in FPT Swivel, Outlet Size: 3/8 in FPT Swivel, Winding Method: Spring Rewind, Graphite, -40 to 250 deg F, 10000 psi, Dimensions: 20-3/4 in H x 20 in W x 10-1/8 in D

Product Type      :      Hose Reel
Series      :      N500
Hose Length      :      50 ft
Hose Inside Diameter      :      3/8 in
Inlet Size      :      1/4 in FPT Swivel
Outlet Size      :      3/8 in FPT Swivel
Pressure Rating      :      10000 psi
Winding Method      :      Spring Rewind
Color      :      Graphite
Temperature Rating      :      -40 to 250 deg F
Dimensions      :      20-3/4 in H x 20 in W x 10-1/8 in D
  • Compact frame and narrow base
  • Non-sparking ratchet assembly
  • Declutching arbor to prevent damage from reverse winding
  • 4-way roller assembly

Applications: Chassis grease, hydraulics, air and water
