Reelcraft® 5405 OHP
Send Print
  1. pin-int

Reelcraft® 5405 OHP

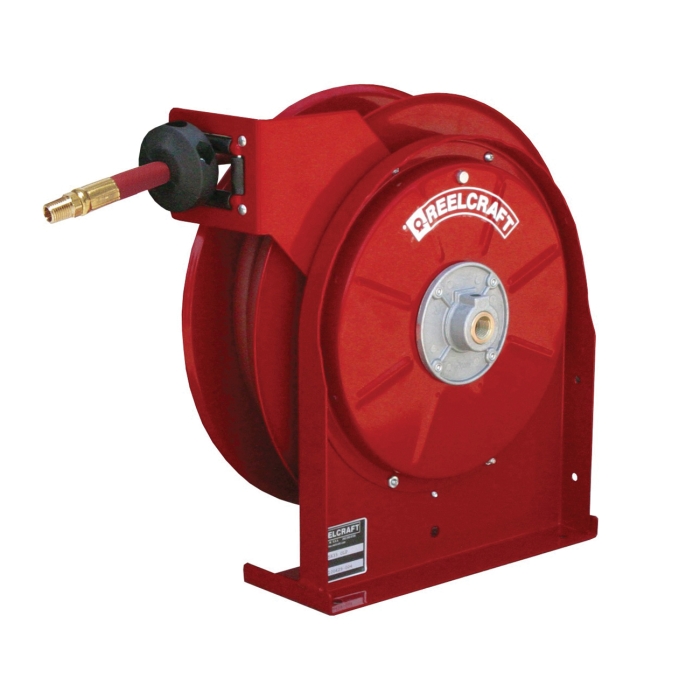

Reelcraft® 5000 Red Steel Premium-Duty High-Pressure Grease Hose Reel, 1/4 in ID x 35 ft L, 5000 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE 5405 OHP
  • MPN: 5405 OHP
  • UPC: 699567001164
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Premium-Duty High-Pressure Grease Hose Reel, 5000 Series, 35 ft Length Hose, 1/4 in Hose Inside Diameter, 0.58 in Hose Outside Diameter, Inlet Size: 1/4 in FPT, Outlet Size: 1/4 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 210 deg F, 5000 psi, Dimensions: 17-5/8 in L x 16-3/4 in W x 5-7/8 in H

California residents see Prop 65 WARNINGS

Product Type      :      Grease Hose Reel
Series      :      5000
Hose Length      :      35 ft
Hose Inside Diameter      :      1/4 in
Hose Outside Diameter      :      0.58 in
Material      :      Steel
Inlet Size      :      1/4 in FPT
Outlet Size      :      1/4 in FPT
Pressure Rating      :      5000 psi
Winding Method      :      Spring Retractable
Finish      :      Powder-Coated
Color      :      Red
Temperature Rating      :      210 deg F
Dimensions      :      17-5/8 in L x 16-3/4 in W x 5-7/8 in H

Reelcraft® Series 5000 reels are durable and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery.

  • Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
  • All steel components are powder-coated for maximum corrosion resistance
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • The latch cam is designed for reliable quiet operation
  • Made in USA
