Reelcraft® B5625 OHP

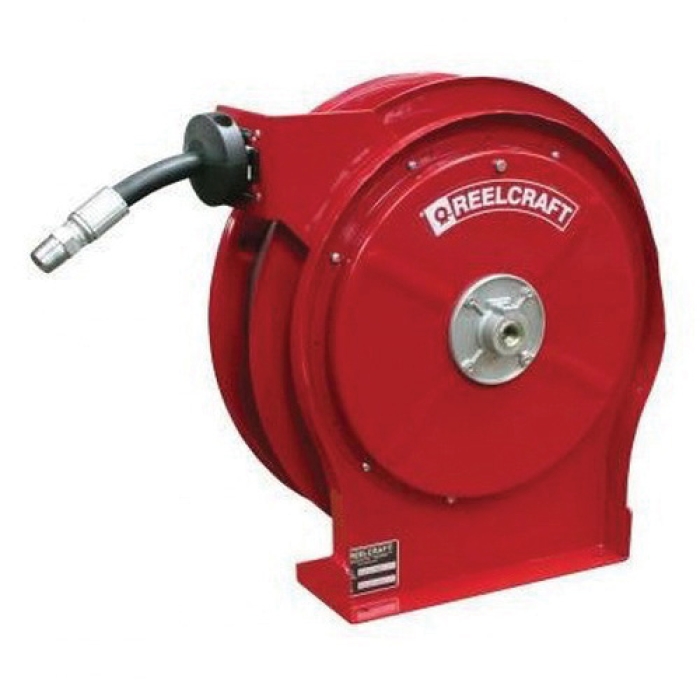

Reelcraft® 5000 Red Steel Premium-Duty High-Pressure Ratchet Latch Grease Hose Reel, 3/8 in ID x 25 ft, 4800 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE B5625 OHP
- MPN: B5625 OHP
- UPC: 699567009313
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Premium-Duty High-Pressure Ratchet Latch Grease Hose Reel, 5000 Series, 25 ft Length Hose, 3/8 in Hose Inside Diameter, 0.73 in Hose Outside Diameter, Inlet Size: 1/4 in FPT, Outlet Size: 1/4 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 210 deg F, 4800 psi, Dimensions: 14-3/8 in L x 14-1/4 in W x 6-1/8 in H, Includes: Hose
California residents see Prop 65 WARNINGS
| Product Type | : | Grease Hose Reel |
| Series | : | 5000 |
| Hose Length | : | 25 ft |
| Hose Inside Diameter | : | 3/8 in |
| Hose Outside Diameter | : | 0.73 in |
| Material | : | Steel |
| Inlet Size | : | 1/4 in FPT |
| Outlet Size | : | 1/4 in FPT |
| Pressure Rating | : | 4800 psi |
| Winding Method | : | Spring Retractable |
| Finish | : | Powder-Coated |
| Color | : | Red |
| Includes | : | Hose |
| Temperature Rating | : | 210 deg F |
| Dimensions | : | 14-3/8 in L x 14-1/4 in W x 6-1/8 in H |
Reelcraft® Series 5000 reels are durable and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. The Series B5000 reels include the ratchet latch design.
- Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
- All steel components are powder-coated for maximum corrosion resistance
- The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The latch pawl is mounted on the guide arm to prevent lock out at full extension
- Made in USA
