Reelcraft® 83000 OMP
Send Print
  1. pin-int

Reelcraft® 83000 OMP

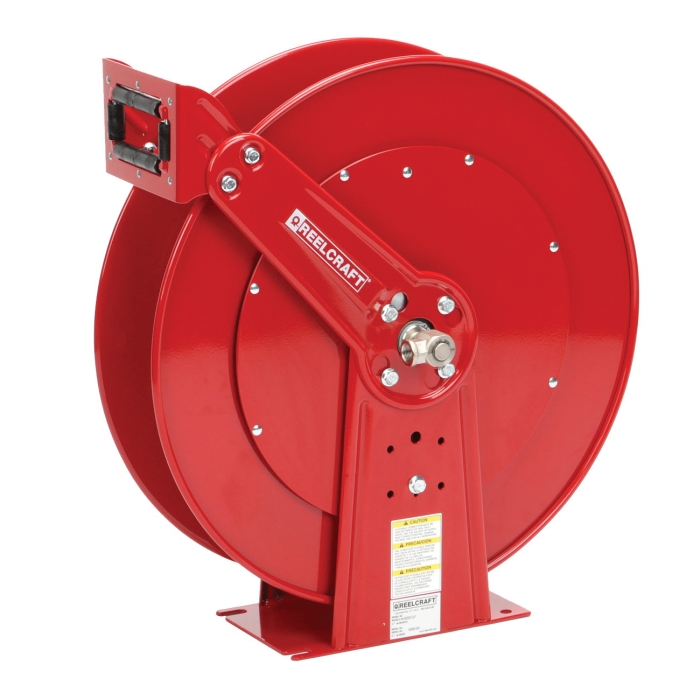

Reelcraft® 80000 Red Steel Heavy-Duty Medium-Pressure Oil Hose Reel, 3/4 in ID x 50 ft, 1500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE 83000 OMP
  • MPN: 83000 OMP
  • UPC: 699567001737
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Heavy-Duty Medium-Pressure Oil Hose Reel, 80000 Series, 50 ft Length Hose, 3/4 in Hose Inside Diameter, 1.188 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 210 deg F, 1500 psi, Dimensions: 25-3/8 in L x 24 in W x 10-1/2 in H

California residents see Prop 65 WARNINGS

Product Type      :      Oil Hose Reel
Series      :      80000
Hose Length      :      50 ft
Hose Inside Diameter      :      3/4 in
Hose Outside Diameter      :      1.188 in
Material      :      Steel
Inlet Size      :      3/4 in FPT
Outlet Size      :      3/4 in FPT
Pressure Rating      :      1500 psi
Winding Method      :      Spring Retractable
Finish      :      Powder-Coated
Color      :      Red
Temperature Rating      :      210 deg F
Dimensions      :      25-3/8 in L x 24 in W x 10-1/2 in H

Reelcraft® Series 80000 and D80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All steel construction and a baked-on powder-coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy-duty applications. Series D80000 reels are also supplied with Reelcraft® ball-bearing style swivel.

  • Reinforced steel - the steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
  • The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Quality finish and corrosion-resistant - individually powder-coated components offer the maximum protection from premature corrosion
  • Made in USA
