Reelcraft® E9200 OMPBW
Send Print
  1. pin-int

Reelcraft® E9200 OMPBW

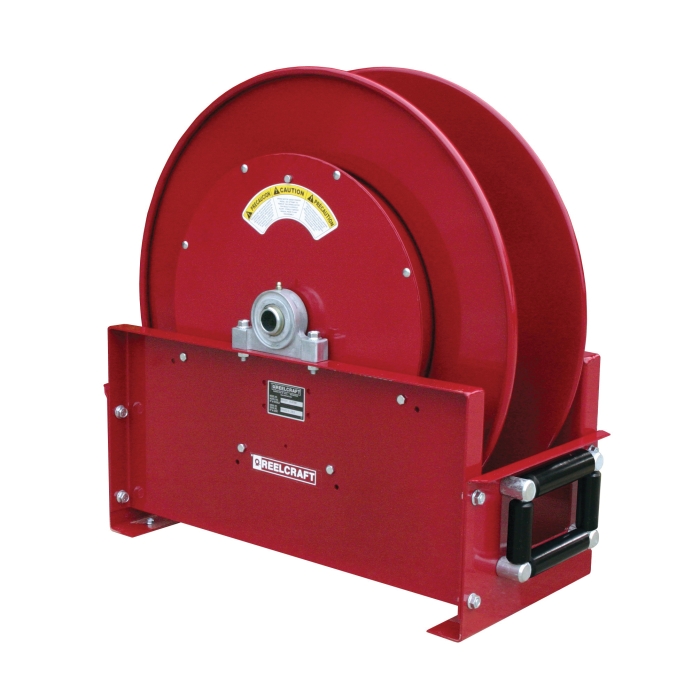

Reelcraft® E9000 Powder-Coated Steel Ultimate-Duty Medium-Pressure Bottom Wind Oil Hose Reel, 1/2 in ID x 75 ft, 3000 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE E9200 OMPBW
  • MPN: E9200 OMPBW
  • UPC: 699567001959
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Ultimate-Duty Medium-Pressure Bottom Wind Oil Hose Reel, E9000 Series, 75 ft Length Hose, 1/2 in Hose Inside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Steel, Finish: Powder-Coated, 210 deg F, 3000 psi, Dimensions: 26-3/8 in L x 26-1/4 in W x 12 in H

California residents see Prop 65 WARNINGS

Product Type      :      Oil Hose Reel
Series      :      E9000
Hose Length      :      75 ft
Hose Inside Diameter      :      1/2 in
Material      :      Steel
Inlet Size      :      1/2 in FPT
Outlet Size      :      1/2 in FPT
Pressure Rating      :      3000 psi
Finish      :      Powder-Coated
Temperature Rating      :      210 deg F
Dimensions      :      26-3/8 in L x 26-1/4 in W x 12 in H

Reelcraft® Series E9000 mobile base reels offer the greatest amount of stability. Ideal for portable service trucks, permanent service or plant work areas. A durable baked-on powder-coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.

  • Substantial base frame - the full width frame has the greatest amount of mounting area and overall strength of reels within its class
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Robust latching mechanism - latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
  • Reels are shipped in the bottom wind position with right hand inlet
  • Made in USA
