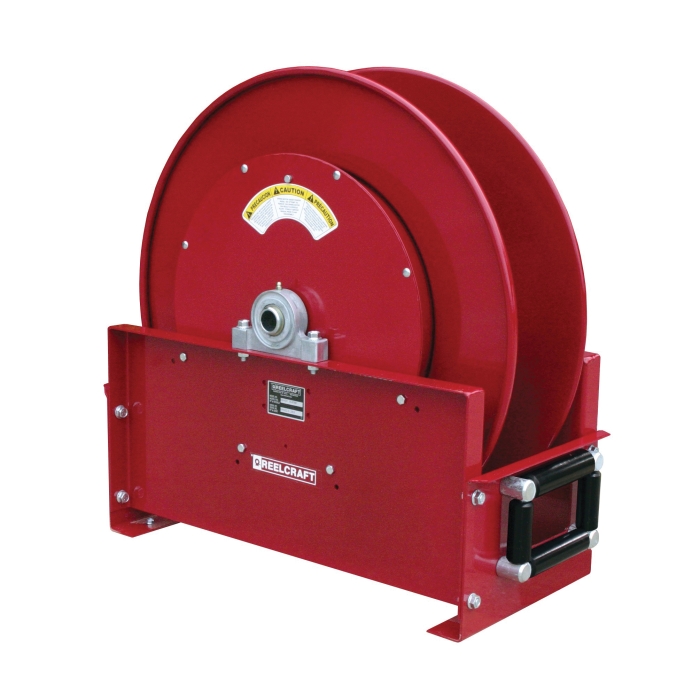

Reelcraft® E9300 OMPBW
Reelcraft® E9000 Red Steel Ultimate-Duty Medium-Pressure Bottom Wind Oil Hose Reel, 3/4 in ID x 50 ft L, 3000 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE E9300 OMPBW
- MPN: E9300 OMPBW
- UPC: 699567001966
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Ultimate-Duty Medium-Pressure Bottom Wind Oil Hose Reel, E9000 Series, 50 ft Length Hose, 3/4 in Hose Inside Diameter, 1-3/16 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Steel, Finish: Powder-Coated, Red, 210 deg F, 3000 psi, Dimensions: 26-3/8 in L x 26-1/4 in W x 12 in H
California residents see Prop 65 WARNINGS
| Product Type | : | Oil Hose Reel |
| Series | : | E9000 |
| Hose Length | : | 50 ft |
| Hose Inside Diameter | : | 3/4 in |
| Hose Outside Diameter | : | 1-3/16 in |
| Material | : | Steel |
| Inlet Size | : | 3/4 in FPT |
| Outlet Size | : | 3/4 in FPT |
| Pressure Rating | : | 3000 psi |
| Finish | : | Powder-Coated |
| Color | : | Red |
| Temperature Rating | : | 210 deg F |
| Dimensions | : | 26-3/8 in L x 26-1/4 in W x 12 in H |
Reelcraft® Series E9000 mobile base reels offer the greatest amount of stability. Ideal for portable service trucks, permanent service or plant work areas. A durable baked-on powder-coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.
- Substantial base frame - the full width frame has the greatest amount of mounting area and overall strength of reels within its class
- The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
- Robust latching mechanism - latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
- Reels are shipped in the bottom wind position with right hand inlet
- Made in USA
Catalog/Catalog Cut Sheet
