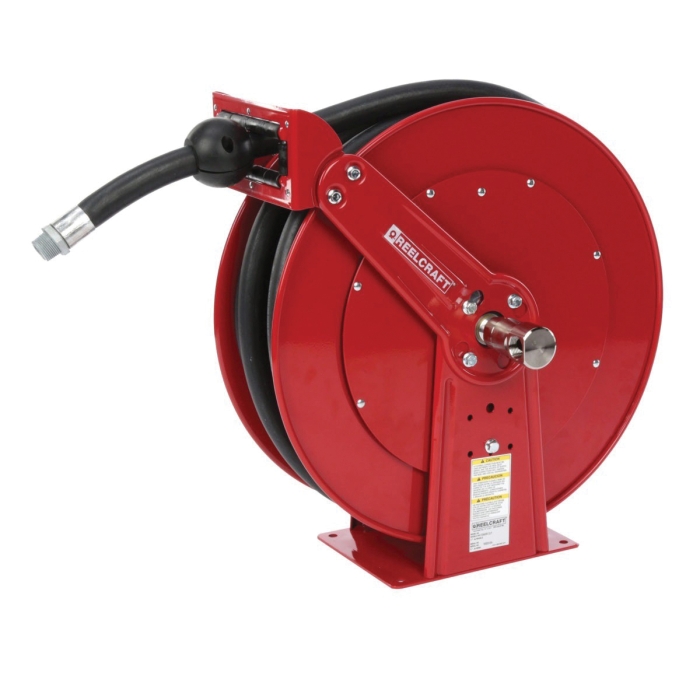

Reelcraft® FD84050 OLP
Reelcraft® FD80000 Powder-Coated Steel Heavy-Duty Low Pressure Fuel Hose Reel, 1 in ID, 50 ft L, 150 deg F, 50 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE FD84050 OLP
- MPN: FD84050 OLP
- UPC: 699567003342
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Heavy-Duty Low Pressure Fuel Hose Reel, FD80000 Series, 50 ft Length Hose, 1 in Hose Inside Diameter, 1-1/2 in Hose Outside Diameter, Inlet Size: 1 in FPT, Outlet Size: 1 in MPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, 150 deg F, 50 psi, Dimensions: 25-3/8 in L x 24 in W x 15-3/4 in H
| Product Type | : | Fuel Hose Reel |
| Series | : | FD80000 |
| Hose Length | : | 50 ft |
| Hose Inside Diameter | : | 1 in |
| Hose Outside Diameter | : | 1-1/2 in |
| Material | : | Steel |
| Inlet Size | : | 1 in FPT |
| Outlet Size | : | 1 in MPT |
| Pressure Rating | : | 50 psi |
| Winding Method | : | Spring Retractable |
| Finish | : | Powder-Coated |
| Temperature Rating | : | 150 deg F |
| Dimensions | : | 25-3/8 in L x 24 in W x 15-3/4 in H |
Reelcraft® spring retractable fuel delivery reels, equipped with FKM seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series F80000 reels are supplied with our ball bearing style swivel.
- Robust latching mechanism - latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
- The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
- Quality finish and corrosion-resistant - individually powder-coated components offer the maximum protection from premature corrosion
- Aluminum shaft
- Made in USA
