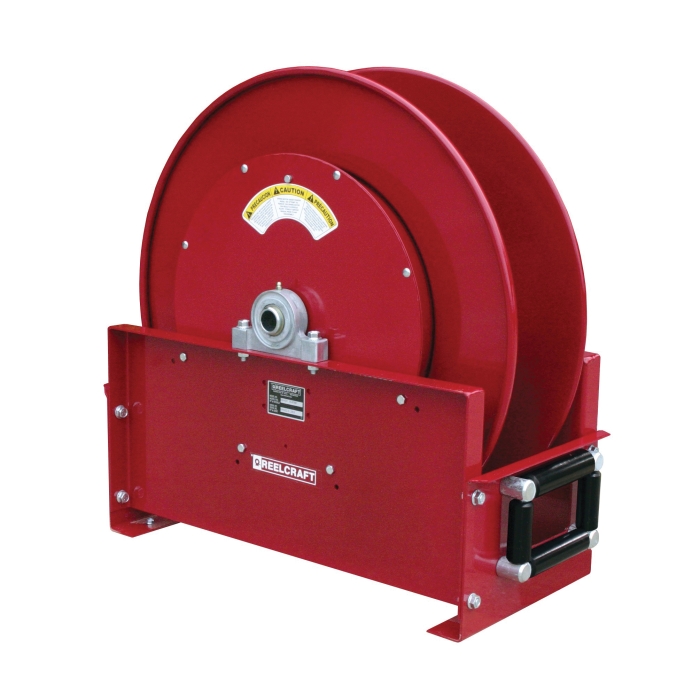

Reelcraft® FD9400 OLPBW
Reelcraft® FD9000 Red Steel Ultimate-Duty Bottom Wind Fuel Hose Reel, 1 in ID x 50 ft L, 500 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE FD9400 OLPBW
- MPN: FD9400 OLPBW
- UPC: 699567003403
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Ultimate-Duty Bottom Wind Fuel Hose Reel, FD9000 Series, 50 ft Length Hose, 1 in Hose Inside Diameter, 1-1/2 in Hose Outside Diameter, Inlet Size: 1 in FPT, Outlet Size: 1 in FPT, Steel, Finish: Powder-Coated, Red, 210 deg F, 500 psi, Dimensions: 26-3/8 in L x 26-1/4 in W x 12 in H
California residents see Prop 65 WARNINGS
| Product Type | : | Fuel Hose Reel |
| Series | : | FD9000 |
| Hose Length | : | 50 ft |
| Hose Inside Diameter | : | 1 in |
| Hose Outside Diameter | : | 1-1/2 in |
| Material | : | Steel |
| Inlet Size | : | 1 in FPT |
| Outlet Size | : | 1 in FPT |
| Pressure Rating | : | 500 psi |
| Finish | : | Powder-Coated |
| Color | : | Red |
| Temperature Rating | : | 210 deg F |
| Dimensions | : | 26-3/8 in L x 26-1/4 in W x 12 in H |
Reelcraft® spring retractable fuel delivery reels, equipped with FKM seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD9000 reels are supplied with our ball-bearing style swivel.
- The full width frame has the greatest amount of mounting area and overall strength of reels within its class
- The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
- Individually powder-coated components offer the maximum protection from premature corrosion
- Reels are shipped in the bottom wind position with right hand inlet
- Made in USA
Catalog/Catalog Cut Sheet
