Reelcraft® FE9300 OLPBW

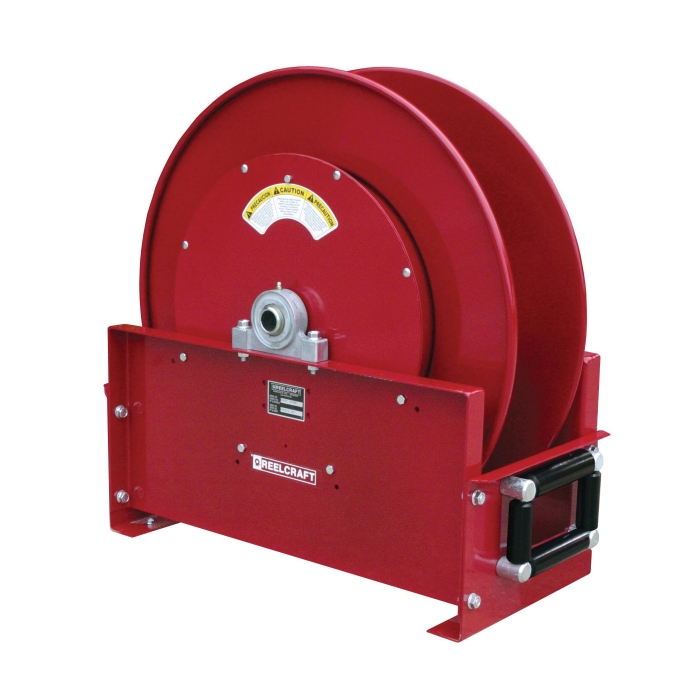

Reelcraft® FE9000 Red Steel Ultimate-Duty Low Pressure Bottom Wind Fuel Hose Reel, 3/4 in ID x 50 ft L, 500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE FE9300 OLPBW
  • MPN: FE9300 OLPBW
  • UPC: 699567003434
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Ultimate-Duty Low Pressure Bottom Wind Fuel Hose Reel, FE9000 Series, 50 ft Length Hose, 3/4 in Hose Inside Diameter, 1-3/16 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 210 deg F, 500 psi, Dimensions: 26-3/8 in L x 26-1/4 in W x 12 in H

California residents see Prop 65 WARNINGS

Product Type      :      Fuel Hose Reel
Series      :      FE9000
Hose Length      :      50 ft
Hose Inside Diameter      :      3/4 in
Hose Outside Diameter      :      1-3/16 in
Material      :      Steel
Inlet Size      :      3/4 in FPT
Outlet Size      :      3/4 in FPT
Pressure Rating      :      500 psi
Winding Method      :      Spring Retractable
Finish      :      Powder-Coated
Color      :      Red
Temperature Rating      :      210 deg F
Dimensions      :      26-3/8 in L x 26-1/4 in W x 12 in H

Reelcraft® spring retractable fuel delivery reels, equipped with FKM seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FE9000 reels are supplied with our ball-bearing style swivel.

  • The full width frame has the greatest amount of mounting area and overall strength of reels within its class
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Individually powder-coated components offer the maximum protection from premature corrosion
  • Reels are shipped in the bottom wind position with right hand inlet
  • Made in USA
