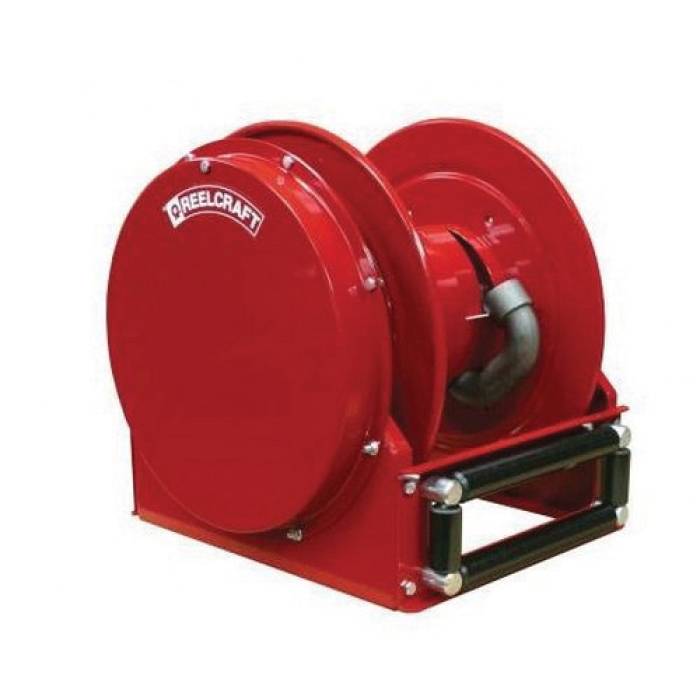

Reelcraft® FSD14005 OLP
Reelcraft® FSD Red Steel Ultimate-Duty Low Pressure Fuel Hose Reel, 1 in ID x 50 ft L, 500 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE FSD14005 OLP
- MPN: FSD14005 OLP
- UPC: 699567008705
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Reelcraft® Ultimate-Duty Low Pressure Fuel Hose Reel, FSD Series, 50 ft Length Hose, 1 in Hose Inside Diameter, 1-1/2 in Hose Outside Diameter, Inlet Size: 1 in FPT, Outlet Size: 1 in FPT, Winding Method: Spring Retractable, Steel, Red, 210 deg F, 500 psi, Dimensions: 20-3/4 in L x 19-1/8 in W x 18-1/4 in H
California residents see Prop 65 WARNINGS
| Product Type | : | Fuel Hose Reel |
| Series | : | FSD |
| Hose Length | : | 50 ft |
| Hose Inside Diameter | : | 1 in |
| Hose Outside Diameter | : | 1-1/2 in |
| Material | : | Steel |
| Inlet Size | : | 1 in FPT |
| Outlet Size | : | 1 in FPT |
| Pressure Rating | : | 500 psi |
| Winding Method | : | Spring Retractable |
| Color | : | Red |
| Temperature Rating | : | 210 deg F |
| Dimensions | : | 20-3/4 in L x 19-1/8 in W x 18-1/4 in H |
Reelcraft® spring retractable fuel delivery reels, equipped with FKM seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85.
- High impact UHMW composite roller guides have outstanding wear and corrosion resistance
- Containerized external drive spring is easily and safely serviced
- Ductile iron fluid path is strong and reliable
- Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life
- Made in USA
