Reelcraft® RT825-OMP
Send Print
  1. pin-int

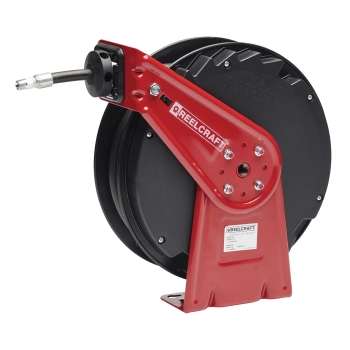

Reelcraft® RT825-OMP

Reelcraft® RT Series Red Steel Medium-Duty Medium-Pressure Oil Hose Reel, 1/2 in ID x 25 ft L, 1000 psi, Hose Included

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE RT825-OMP
  • MPN: RT825-OMP
  • UPC: 699567000518
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Medium-Duty Medium-Pressure Oil Hose Reel, RT Series, 25 ft Length Hose, 1/2 in Hose Inside Diameter, 0.82 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 150 deg F, 1000 psi, Dimensions: 17-7/8 in L x 16-1/2 in W x 6-1/4 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Product Type      :      Oil Hose Reel
Series      :      RT
Hose Length      :      25 ft
Hose Inside Diameter      :      1/2 in
Hose Outside Diameter      :      0.82 in
Material      :      Steel
Inlet Size      :      1/2 in FPT
Outlet Size      :      1/2 in FPT
Pressure Rating      :      1000 psi
Winding Method      :      Spring Retractable
Finish      :      Powder-Coated
Color      :      Red
Includes      :      Hose
Temperature Rating      :      150 deg F
Dimensions      :      17-7/8 in L x 16-1/2 in W x 6-1/4 in H

Reelcraft® Series RT is an economical choice for a medium duty, lighter-weight, spring retractable hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use. The industrial-grade drive spring is protected from the environment in an engineered plastic spool for longer service life. Guide arm adjusts to seven positions.

  • The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
  • Made in USA

Applications: For demanding, yet require a product that can withstand industrial and commercial
