Reelcraft® TH7400 OMP
Send Print
  1. pin-int

Reelcraft® TH7400 OMP

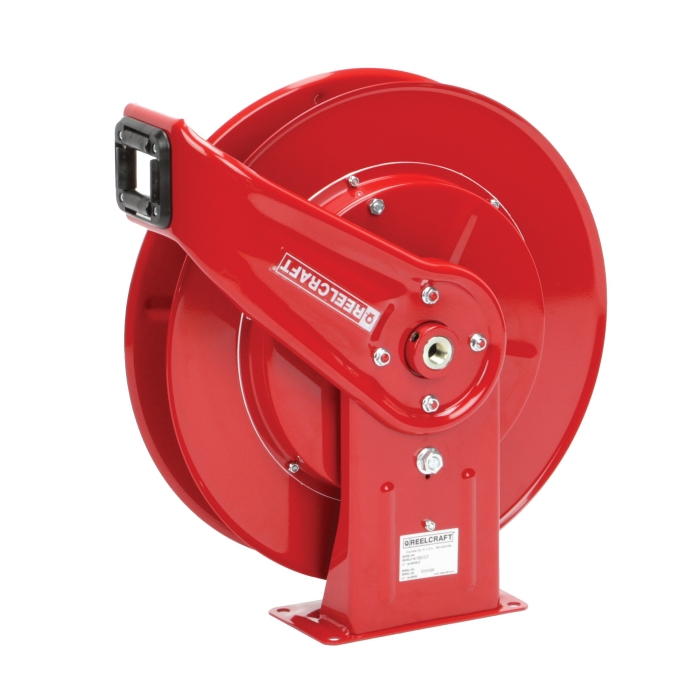

Reelcraft® TH7000 Red Steel Heavy-Duty Medium-Pressure Twin Hydraulic Hose Reel, 1/4 in ID x 45 ft, 3000 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE TH7400 OMP
  • MPN: TH7400 OMP
  • UPC: 699567003502
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Heavy-Duty Medium-Pressure Twin Hydraulic Hose Reel, TH7000 Series, 45 ft Length Hose, 1/4 in Hose Inside Diameter, 0.53 in Hose Outside Diameter, Inlet Size: 1/4 in FPT, Outlet Size: 1/4 in FPT, Steel, Finish: Powder-Coated, Red, 210 deg F, 3000 psi, Dimensions: 20-1/4 in L x 19-3/4 in W x 7-3/4 in H

California residents see Prop 65 WARNINGS

Product Type      :      Hydraulic Hose Reel
Series      :      TH7000
Hose Length      :      45 ft
Hose Inside Diameter      :      1/4 in
Hose Outside Diameter      :      0.53 in
Material      :      Steel
Inlet Size      :      1/4 in FPT
Outlet Size      :      1/4 in FPT
Pressure Rating      :      3000 psi
Finish      :      Powder-Coated
Color      :      Red
Temperature Rating      :      210 deg F
Dimensions      :      20-1/4 in L x 19-3/4 in W x 7-3/4 in H

The hydraulic Series hose reel incorporates contemporary engineering and manufacturing techniques to give trouble-free performance. Reels are all steel construction and compact for applications with critical space requirements.

  • Individually powder-coated components offer the maximum protection from premature corrosion
  • Declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Only the highest-quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life
  • Constant tension or pos-i-latch spool mechanism
  • Compact design for critical space requirements
  • Made in USA
