Hannay Reels® 1014-14-16
Send Print
  1. pin-int

Hannay Reels® 1014-14-16

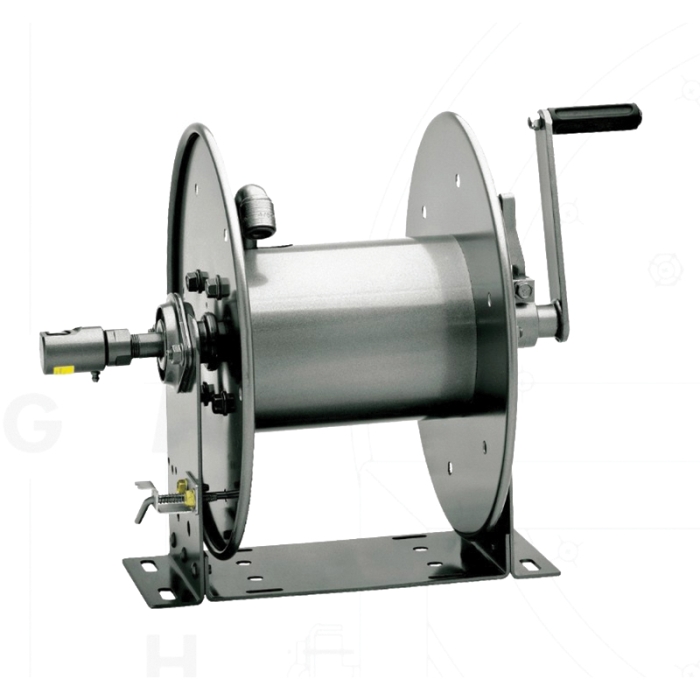

Hannay Reels® 1000 Hand Crank Hose Reel, 1/4 in ID

  • Manufacturers: Hannay Reels
  • Brand Name: Hannay Reels®
  • Tipco Part No: HAN 25-14
  • MPN: 1014-14-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Hannay Reels® Hand Crank Hose Reel, 1000 Series, 1/4 in Hose Inside Diameter, Inlet Size: 1/2 in FPT Swivel, Outlet Size: 3/8 in FPT Swivel, Winding Method: Manual Rewind, 20 - 400 deg F, Dimensions: 14-7/8 in H x 14 in W x 19-1/4 in D

Product Type      :      Hose Reel
Series      :      1000
Hose Inside Diameter      :      1/4 in
Inlet Size      :      1/2 in FPT Swivel
Outlet Size      :      3/8 in FPT Swivel
Winding Method      :      Manual Rewind
Temperature Rating      :      20 - 400 deg F
Dimensions      :      14-7/8 in H x 14 in W x 19-1/4 in D
  • Lightweight, compact with an e-coated frame
  • Direct crank rewind permanently attached
  • Adjustable cam-lock brake standard
  • Exterior-mounting holes for easier installation
  • Field installable pin lock

Applications: Pressure washing, wash down, spray operations and air
