Reelcraft® 82000 OLS
Send Print
  1. pin-int

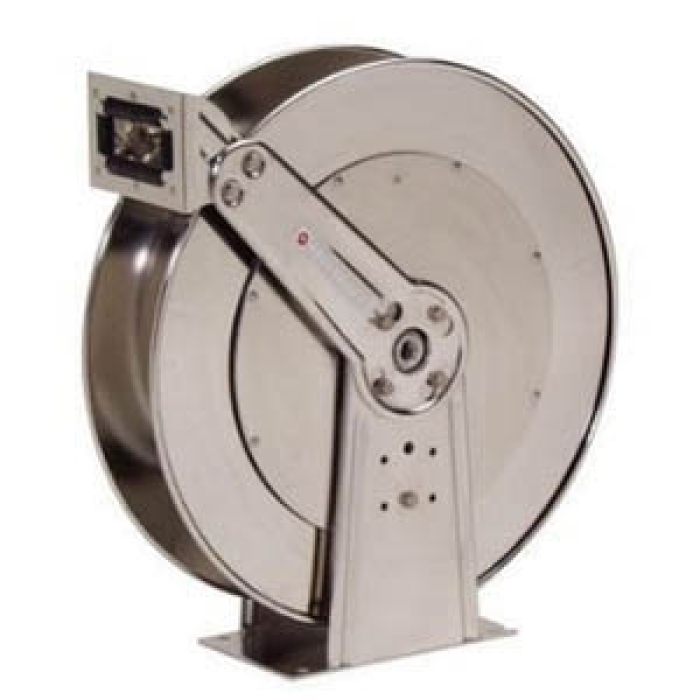

Reelcraft® 82000 OLS

Reelcraft® 80000 Red Stainless Steel Heavy-Duty Low and Medium-Pressure Hose Reel, 1/2 in ID x 100 ft, 500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE 82000 OLS
  • MPN: 82000 OLS
  • UPC: 699567002628
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Heavy-Duty Low and Medium-Pressure Hose Reel, 80000 Series, 100 ft Length Hose, 1/2 in Hose Inside Diameter, 3/4 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Winding Method: Spring Retractable, Stainless Steel, Red, 210 deg F, 500 psi, Dimensions: 25-3/8 in L x 24 in W x 10-1/2 in H

California residents see Prop 65 WARNINGS

Temperature Rating      :      210 deg F
Winding Method      :      Spring Retractable
Pressure Rating      :      500 psi
Hose Outside Diameter      :      3/4 in
Hose Inside Diameter      :      1/2 in
Hose Length      :      100 ft
Dimensions      :      25-3/8 in L x 24 in W x 10-1/2 in H
Product Type      :      Hose Reel
Series      :      80000
Inlet Size      :      1/2 in FPT
Material      :      Stainless Steel
Color      :      Red

Reelcraft® stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include FKM O-rings.

  • Reinforced steel - the steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
  • The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Quality finish and corrosion-resistant - individually powder-coated components offer the maximum protection from premature corrosion
  • Full flow stainless steel shaft and swivel assures maximum product delivery
  • Heavy-duty brackets eliminate bending due to angular hose pull
  • Nylon guide rollers reduce hose drag and abrasion
  • Vibration-proof self-locking fasteners assures assembly integrity
  • Made in USA
