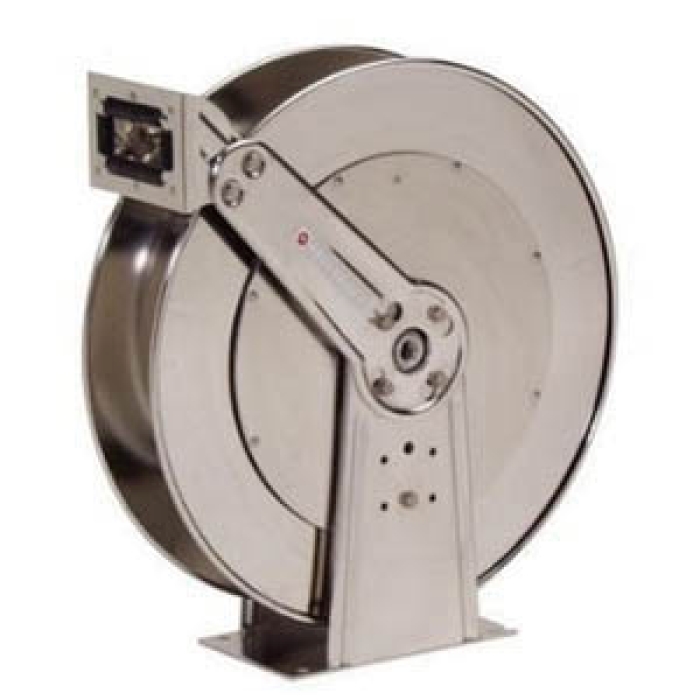

Reelcraft® 83000 OMS-S

Reelcraft® Low and Medium-Pressure Hose Reel, 80000 Series, 50 ft Length Hose, 3/4 in Hose Inside Diameter, 1.188 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Winding Method: Spring Retractable, Stainless Steel, 210 deg F, 1250 psi, Dimensions: 25-3/8 in L x 24 in W x 10-1/2 in H

California residents see Prop 65 WARNINGS

Reelcraft® stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include FKM O-rings.

• The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
• The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
• The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
• Stainless steel components offer the maximum protection from premature corrosion
• Made in USA

Applications: For food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling, coastal, off-shore and on-board ship in marine applications

• Catalog/Catalog Cut Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_4400 OLP_CAT.pdf
• Installation Instructions https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_83000 OMS-S_II.pdf
• Specification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7600 OMS55_SS.pdf
• Technical Drawing/Parts Diagram https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_81000 OLP_TD.pdf
