Reelcraft® D83000 OLS
Send Print
  1. pin-int

Reelcraft® D83000 OLS

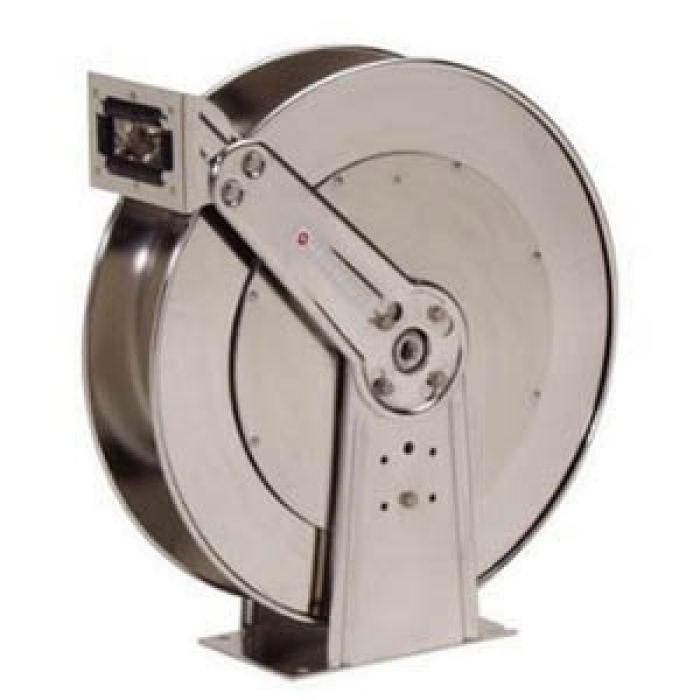

Reelcraft® 80000 Stainless Steel Low and Medium-Pressure Hose Reel, 3/4 in ID x 75 ft L, 500 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE D83000 OLS
  • MPN: D83000 OLS
  • UPC: 699567002642
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Low and Medium-Pressure Hose Reel, 80000 Series, 75 ft Length Hose, 3/4 in Hose Inside Diameter, 1.188 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Winding Method: Spring Retractable, Stainless Steel, 210 deg F, 500 psi, Dimensions: 25-3/8 in L x 24 in W x 10-1/2 in H

California residents see Prop 65 WARNINGS

Temperature Rating      :      210 deg F
Winding Method      :      Spring Retractable
Pressure Rating      :      500 psi
Hose Outside Diameter      :      1.188 in
Hose Inside Diameter      :      3/4 in
Hose Length      :      75 ft
Dimensions      :      25-3/8 in L x 24 in W x 10-1/2 in H
Product Type      :      Hose Reel
Series      :      80000
Inlet Size      :      3/4 in FPT
Material      :      Stainless Steel

Reelcraft® stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include FKM O-rings.

  • Series 80000 and D80000 stainless reels have an aluminum fluid path
  • The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
  • The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Stainless steel components offer the maximum protection from premature corrosion
  • Made in USA

Applications: For food processing, pre-rinse, wash down, chemical transfer and industrial solvent handling
