Reelcraft® D9300 OMSBW

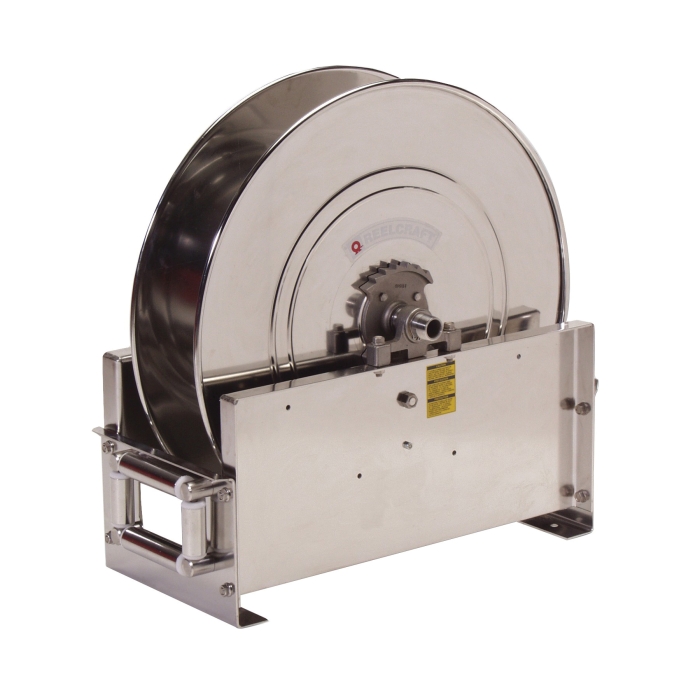

Reelcraft® D9000 Stainless Steel Low and Medium-Pressure Bottom Wind Hose Reel, 3/4 in ID x 75 ft L, 3000 psi

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE D9300 OMSBW
  • MPN: D9300 OMSBW
  • UPC: 699567002611
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® Low and Medium-Pressure Bottom Wind Hose Reel, D9000 Series, 75 ft Length Hose, 3/4 in Hose Inside Diameter, 1-3/16 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in FPT, Stainless Steel, 210 deg F, 3000 psi, Dimensions: 26.374 in L x 26.25 in W x 12 in H, Includes: FKM O-Ring

California residents see Prop 65 WARNINGS

Temperature Rating      :      210 deg F
Pressure Rating      :      3000 psi
Hose Outside Diameter      :      1-3/16 in
Hose Inside Diameter      :      3/4 in
Hose Length      :      75 ft
Dimensions      :      26.374 in L x 26.25 in W x 12 in H
Product Type      :      Hose Reel
Series      :      D9000
Inlet Size      :      3/4 in FPT
Material      :      Stainless Steel

Reelcraft® stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include FKM O-rings.

  • The full width frame has the greatest amount of mounting area and overall strength of reels within its class
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
  • Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
  • Reels are shipped in the bottom wind position with right hand inlet
  • Made in USA
