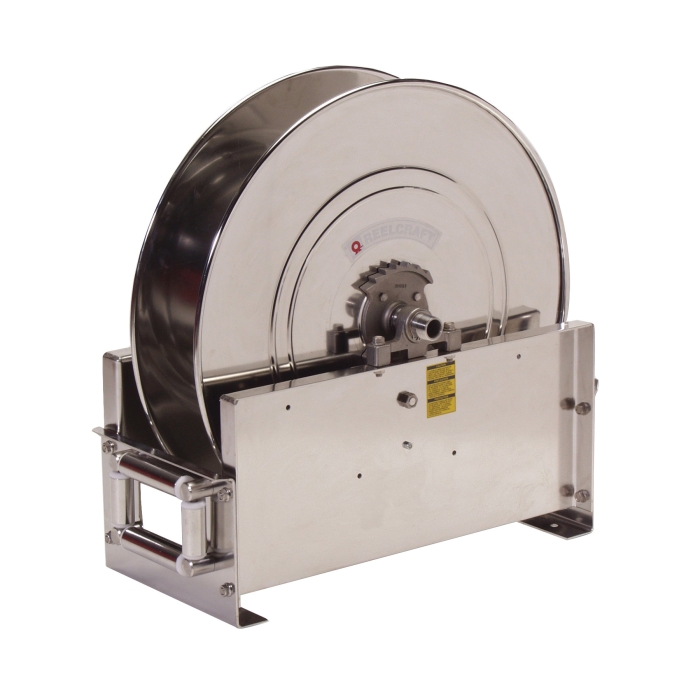

Reelcraft® D9200 OLSBW
Reelcraft® D9000 Stainless Steel Low and Medium-Pressure Bottom Wind Hose Reel, 1/2 in ID x 100 ft L, 500 psi
- Manufacturers: Reelcraft Industries
- Brand Name: Reelcraft®
- Tipco Part No: REE D9200 OLSBW
- MPN: D9200 OLSBW
- UPC: 699567002574
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
| Compare / Item # | Properties | Quantity | Price | Availability |
|---|---|---|---|---|
|
Reelcraft® D9200 OLSBW Reelcraft® D9000 Stainless Steel Low and Medium-Pressure Bottom Wind Hose Reel, 1/2 in ID x 100 ft L, 500 psi |
|
Register to see Availability | |
|
Reelcraft® D9300 OLSBW Reelcraft® D9000 Stainless Steel Low and Medium-Pressure Bottom Wind Hose Reel, 3/4 in ID x 75 ft L, 500 psi |
|
Register to see Availability | |
|
Reelcraft® D9400 OLSBW Reelcraft® D9000 Stainless Steel Low and Medium-Pressure Bottom Wind Hose Reel, 1 in ID x 50 ft L, 500 psi |
|
Register to see Availability |
Reelcraft® Low and Medium-Pressure Bottom Wind Hose Reel, D9000 Series, 100 ft Length Hose, 1/2 in Hose Inside Diameter, 3/4 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in FPT, Stainless Steel, 210 deg F, 500 psi, Dimensions: 26-3/8 in L x 26-1/4 in W x 12 in H, Includes: FKM O-Ring
California residents see Prop 65 WARNINGS
| Temperature Rating | : | 210 deg F |
| Pressure Rating | : | 500 psi |
| Hose Outside Diameter | : | 3/4 in |
| Hose Inside Diameter | : | 1/2 in |
| Hose Length | : | 100 ft |
| Dimensions | : | 26-3/8 in L x 26-1/4 in W x 12 in H |
| Product Type | : | Hose Reel |
| Series | : | D9000 |
| Inlet Size | : | 1/2 in FPT |
| Material | : | Stainless Steel |
Reelcraft® stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also suitable for coastal, offshore and on-board ship in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel include FKM O-rings.
- Substantial base frame - the full width frame has the greatest amount of mounting area and overall strength of reels within its class
- The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
- Robust latching mechanism - latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
- Full flow stainless steel shaft and swivel assures maximum product delivery
- Heavy-duty brackets eliminate bending due to angular hose pull
- Nylon guide rollers reduce hose drag and abrasion
- Vibration-proof self-locking fasteners assures assembly integrity
- Made in USA
