Reelcraft® TW86075 OLPT
Send Print
  1. pin-int

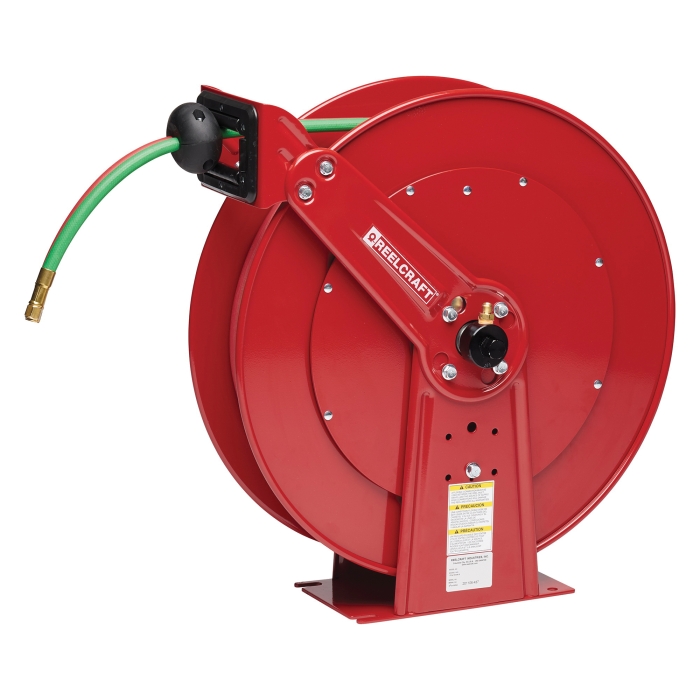

Reelcraft® TW86075 OLPT

Reelcraft® TW Series Red Steel T-Grade Heavy-Duty Low Pressure Welding Hose Reel, 3/8 in ID x 75 ft, 200 psi, Hose Included

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • Tipco Part No: REE TW86075 OLPT
  • MPN: TW86075 OLPT
  • UPC: 699567000327
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Reelcraft® T-Grade Heavy-Duty Low Pressure Welding Hose Reel, TW Series, 75 ft Length Hose, 3/8 in Hose Inside Diameter, 5/8 in Hose Outside Diameter, Inlet Size: 1/4 in MPT, Outlet Size: 9/16-18, Winding Method: Spring Retractable, Steel, Finish: Powder-Coated, Red, 150 deg F, 200 psi, Dimensions: 25-3/8 in L x 24 in W x 12-1/4 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Product Type      :      Welding Hose Reel
Series      :      TW
Hose Length      :      75 ft
Hose Inside Diameter      :      3/8 in
Hose Outside Diameter      :      5/8 in
Material      :      Steel
Inlet Size      :      1/4 in MPT
Outlet Size      :      9/16-18
Pressure Rating      :      200 psi
Winding Method      :      Spring Retractable
Finish      :      Powder-Coated
Color      :      Red
Includes      :      Hose
Temperature Rating      :      150 deg F
Dimensions      :      25-3/8 in L x 24 in W x 12-1/4 in H

Reelcraft® Series TW spring retractable gas welding hose reels have an independent dual swivel body manufactured from aluminum and hard coated for wear-resistance. This unique design assures positive separation of gases. Double-sealed, special molded O-rings prevent leakage. Swivel body and inlet are both permanently identified with machined grooves on the acetylene side to assure proper installation.

  • Leak prevention - the double sealed, special molded O-rings prevent leakage, the swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation
  • Quality finish and corrosion-resistant - individually powder-coated components offer the maximum protection from premature corrosion
  • Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
  • Independent dual swivel body manufactured from aluminum and hard-coated for wear resistance assures positive separation of gases due to its unique design
  • Made in USA
