AIRpipe 5155 APU 5155 | Tipco Technologies
AIRpipe 5155
Send Print
  1. pin-int

AIRpipe 5155

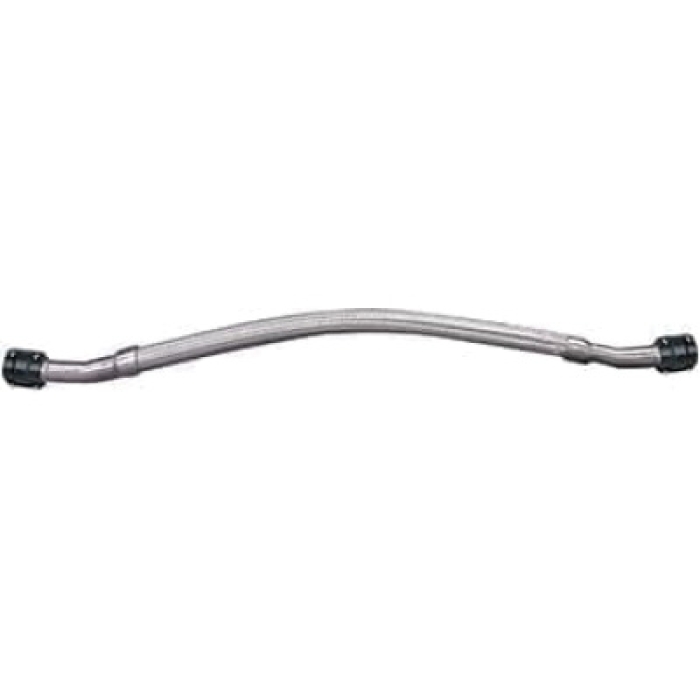

AIRpipe 5155 304 Stainless Steel 30 deg Flexible Hose, 50 mm, 53.15 in L

  • Manufacturers: AIRpipe USA
  • Brand Name: AIRpipe
  • Tipco Part No: APU 5155
  • MPN: 5155
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

AIRpipe 30 deg Flexible Hose, Nominal Size: 50 mm, 50.1 mm OD, 50 mm ID, 53.15 in Length, 304 Stainless Steel, Construction: Braided, Resistance Properties: Mineral and Synthetic Lubricated Oils, -4 deg F Low, 176 deg F High

Product Type      :      Flexible Hose
Temperature Low      :      -4 deg F
Temperature High      :      176 deg F
Nominal Size      :      50 mm
Inside Diameter      :      50 mm
Outside Diameter      :      50.1 mm
Length      :      53.15 in
Material      :      304 Stainless Steel
Construction      :      Braided
Resistance Properties      :      Mineral and Synthetic Lubricated Oils
  • Allows for expansion and contraction of the pipe system
  • By-pass obstacles
  • Resistant to mineral or synthetic lubricated oils

Standards/Certifications: ISO 8573-1 Specified

Applications: For compressor and equipment outlets to absorb vibration
