Dixon® PL500

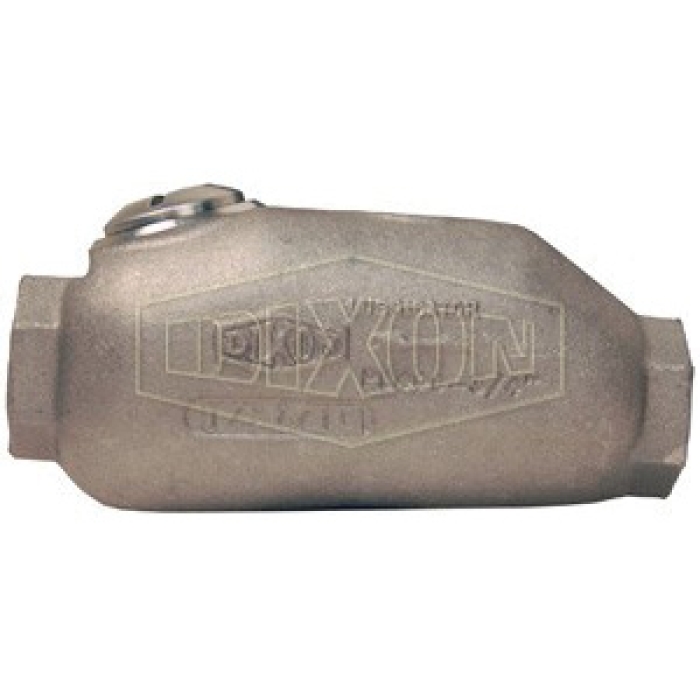

Dixon® PL500 In-Line Lubricator, 1 in, 100 scfm

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN PL500
  • MPN: PL500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® In-Line Lubricator, Inlet Size: 1 in, Inlet Connection Type: FPT, Flow Rating: 100 scfm, 250 psi, Lubricant Capacity: 16 fl-oz, Aluminum

California residents see Prop 65 WARNINGS

Pressure Rating      :      250 psi
Material      :      Aluminum
  • Transparent sight disc allows visual inspection of oil level
  • Oil flow regulated by screwdriver screw adjustment
  • Minimum flow rate is 30 scfm
  • Type of oil to use - use any petroleum-based, non-detergent light weight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil®DTE light or comparable oil
  • Each time an air tool is operated, a fine mist of oil is injected into it along with the air from the compressor
  • Installation is recommended within 25 ft of the tool to be lubricated

Applications: Designed to protect portable or stationary air tools by efficiently oiling the tool mechanisms

Safety Notes:

  • Not recommended for constant flow applications.
  • For reciprocating tools only.
  • Do not use any synthetic oil or oils containing additives or solvents.
