Loctite® 37424
Send Print
  1. pin-int

Loctite® 37424

Loctite® 640™ Green Sleeve Retainer Compound, 6 mL Tube, Liquid, Sharp, Irritating Odor

  • Manufacturers: Henkel
  • Brand Name: Loctite®
  • Tipco Part No: LOC 37424
  • MPN: 37424
  • UPC: 079340374249
  • Min. Order Qty: 12
  • Qty. Interval: 12
  • Register to see Availability

Loctite® Sleeve Retainer Compound, 640™ Series, Container Size: 6 mL, Container Type: Tube, Liquid, Green, Sharp, Irritating, Methacrylate Base, Composition: Polyurethane Methacrylate Resin, Polyglycol Dimethacrylate, Hydroxyalkyl Methacrylate, Acrylic Acid, Cumene Hydroperoxide, Polyglycol Dimethacrylate, Subsituted Silane, Cumene, Adhesion Promoter, Setting Time: 2 hr, Curing Time: 24 hr, Specific Gravity: 1.12, Flash Point: 93.3 deg C, VOC Content: 29.05 g/L, Viscosity: 600 cPs, -65 to 400 deg F, Applicable Materials: Brass, Steel

California residents see Prop 65 WARNINGS

Product Type      :      Retainer Compound
Setting Time      :      2 hr
Curing Time      :      24 hr
Specific Gravity      :      1.12
Flash Point      :      93.3 deg C
VOC Content      :      29.05 g/L
Viscosity      :      600 cPs
Temperature Rating      :      -65 to 400 deg F
Series      :      640™
Applicable Materials      :      Brass, Steel
Container Size      :      6 mL
Container Type      :      Tube
Form      :      Liquid
Color      :      Green
Odor/Scent      :      Sharp, Irritating
Base Type      :      Methacrylate
Composition      :      Polyurethane Methacrylate Resin, Polyglycol Dimethacrylate, Hydroxyalkyl Methacrylate, Acrylic Acid, Cumene Hydroperoxide, Polyglycol Dimethacrylate, Subsituted Silane, Cumene, Adhesion Promoter

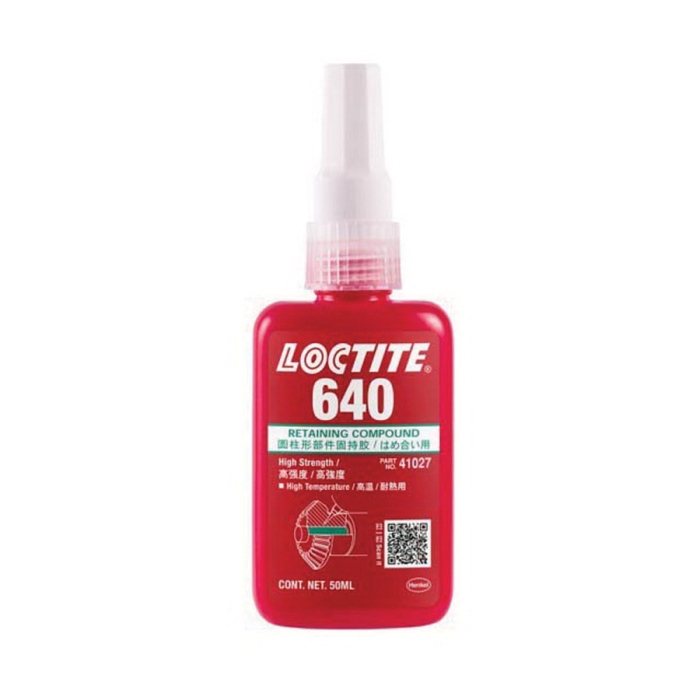

Loctite® 640 is a green, anaerobic, low viscosity, methacrylate ester based retaining compound ideal for parts requiring a longer positioning time. Fixturing time on steel is 2 hr. Also used for active metals such as brass. This is a high strength product with good temperature resistance. Max diametrical clearance is 0.1 mm and service temperature is -55 to 175 deg C. Fluorescence allows product presence to be monitored.

  • one part product, requires no mixing
  • Slow curing
  • Ideal for large diameter components
  • Also for active metals such as brass
  • High-strength
  • Good temperature resistance

Applications: For cylinder sleeves, valve guides, valve seats, bearings and bushings, woodruff keys, liner assemblies
