Dixon® 22

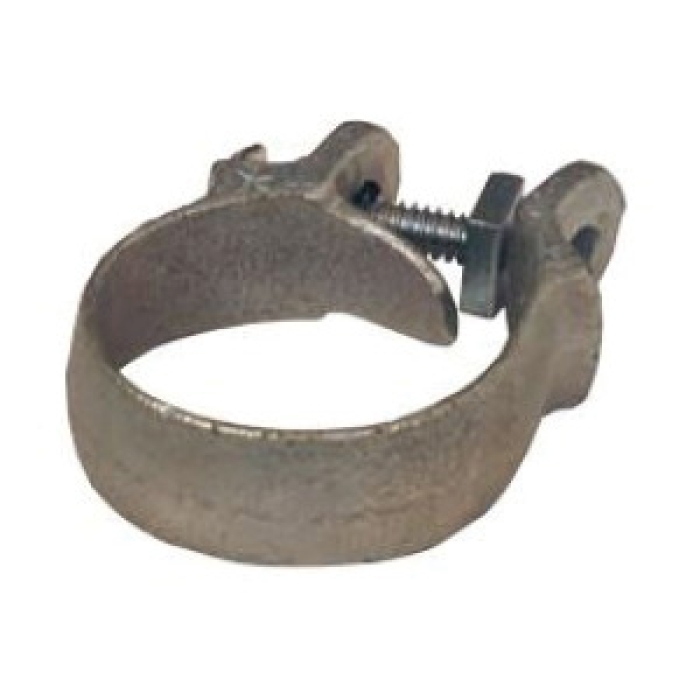

Dixon® 22 Plated Iron Single Bolt Clamp, 3-28/64 - 3-40/64 in, 13/16 in W

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 22
  • MPN: 22
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Single Bolt Clamp, 3-40/64 in Maximum Clamp Diameter, 3-28/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 21 ft-lb, Iron, Finish: Plated, 13/16 in Width

California residents see Prop 65 WARNINGS

Product Type      :      Bolt Clamp
Finish      :      Plated
Width      :      13/16 in
Maximum Clamp Diameter      :      3-40/64 in
Minimum Clamp Diameter      :      3-28/64 in
Locking Style      :      Bolt
Torque Rating      :      21 ft-lb
Material      :      Iron

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Safety Notes: The use of lubricant on bolts will adversely effect clamp performance.

  • Torque values for clamps are based on dry bolts.
  • Measure hose OD accurately before ordering clamps.
