Dixon® 1125

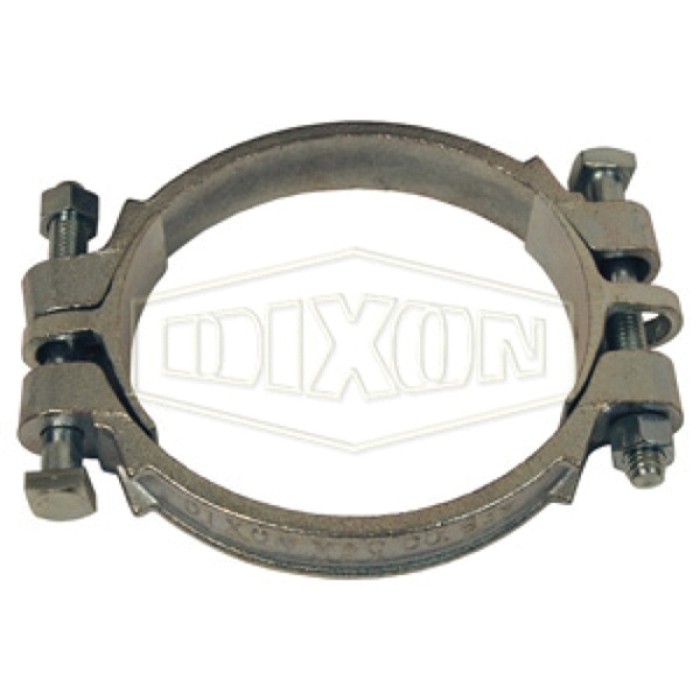

Dixon® 1125 Plated Iron 2-Bolt Clamp with Saddles, 11-24/64 - 9-60/64 in, 13-13/16 in W, 1-9/16 in Thick

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 1125
  • MPN: 1125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 2-Bolt Clamp with Saddles, 11-24/64 in Maximum Clamp Diameter, 9-60/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 125 ft-lb, Iron, Finish: Plated, 12-3/16 in Length, 13-13/16 in Width, 1-9/16 in Thickness

California residents see Prop 65 WARNINGS

Product Type      :      Bolt Clamp
Finish      :      Plated
Length      :      12-3/16 in
Width      :      13-13/16 in
Thickness      :      1-9/16 in
Maximum Clamp Diameter      :      11-24/64 in
Minimum Clamp Diameter      :      9-60/64 in
Locking Style      :      Bolt
Torque Rating      :      125 ft-lb
Material      :      Iron
  • Inner surface has dual gripping ridges
  • Bolt lugs are reinforced to prevent bending out of alignment

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

Safety Notes: The use of lubricant on bolts will adversely effect clamp performance.

  • Consult Dixon® when using double bolt clamps on helical wire hose.
  • Measure hose OD accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
