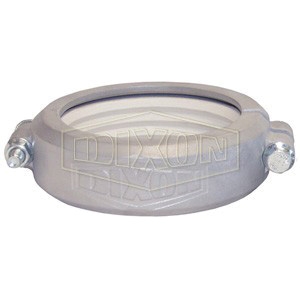

Dixon® Grooved Bolt Clamp, DBV Series, Nominal Size: 4 in, Locking Style: Bolt, Torque Rating: 20 ft-lb, Forged Aluminum, 20 - 300 deg F, Includes: White Buna-N Seal, Packaging Quantity: 1 PK
California residents see Prop 65 WARNINGS
| Product Type | : | Bolt Clamp |
| Temperature Rating | : | 20 - 300 deg F |
| Includes | : | White Buna-N Seal |
| Packaging Quantity | : | 1 PK |
| Series | : | DBV |
| Nominal Size | : | 4 in |
| Locking Style | : | Bolt |
| Torque Rating | : | 20 ft-lb |
| Material | : | Forged Aluminum |
- Precision forged to provide an exact fit and great appearance
- Unlike steel groove clamps that secure pipe ends with high-clamping force against tubing/piping walls, the Dixon aluminum clamp takes the full bolt force and locks into the groove of the tube/pipe, preventing distortion of the tube/pipe diameter
- Precision casting and machined dimensions provide an exact fit and great appearance
- Easy to preform maintenance
- Leak-tight connection
- Use of lock nuts prevents clamps from loosening in high-vibration applications
- Grooved clamps are often used on pipe connections on dry bulk tankers in place of welding offering the ability to adjust, change or replace pipe sections without the need for a permanent joint such as a weld
- Steel bolts/nuts
Applications: Designed to join two pieces of pipe together
Safety Notes:
- Torque the bolts until metal to metal contact occurs at the bolt pads (about 20 ft-lb).
- Bolts must be tightened evenly to prevent gasket pinching and clamp breaking.
- Do not tighten one side then the other.
- Over-torquing will not improve sealing and may result in failure of the clamps.
- Do not torque bolts over 30 ft-lb.
- Intended for tank truck applications only.
