Dixon® J48

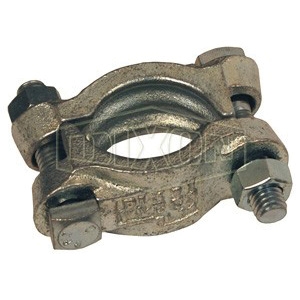

Dixon® J48 Plated Iron 2-Bolt Clamp, 1-8/64 - 1-12/64 in, 1 in W, 13/16 in Thick

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN J48
  • MPN: J48
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 2-Bolt Clamp, 1-12/64 in Maximum Clamp Diameter, 1-8/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 15 ft-lb, Iron, Finish: Plated, 2-3/16 in Length, 1 in Width, 13/16 in Thickness

California residents see Prop 65 WARNINGS

Product Type      :      Bolt Clamp
Finish      :      Plated
Length      :      2-3/16 in
Width      :      1 in
Thickness      :      13/16 in
Maximum Clamp Diameter      :      1-12/64 in
Minimum Clamp Diameter      :      1-8/64 in
Locking Style      :      Bolt
Torque Rating      :      15 ft-lb
Material      :      Iron
  • Inner surface has dual gripping ridges
  • Bolt lugs are reinforced to prevent bending out of alignment

Safety Notes:

  • The use of lubricant on bolts will adversely effect clamp performance.
  • Consult Dixon® when using double bolt clamps on helical wire hose.
  • Measure hose OD accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
