Dixon® LSS104
Send Print
  1. pin-int

Dixon® LSS104

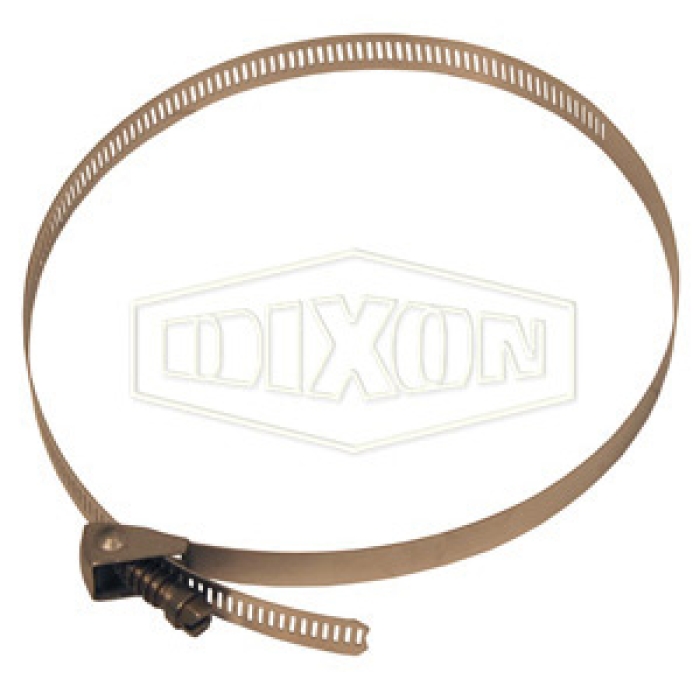

Dixon® LSS 201 Stainless Steel Quick Release Worm Gear Clamp, 2-7/8 - 7 in, 1/2 in W

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN LSS104
  • MPN: LSS104
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Quick Release Worm Gear Clamp, LSS Series, 7 in Maximum Clamp Diameter, 2-7/8 in Minimum Clamp Diameter, Locking Style: Screw Lock, Torque Rating: 50 in-lb, 201 Stainless Steel, 1/2 in Width, Packaging Quantity: 10 BX

California residents see Prop 65 WARNINGS

Product Type      :      Worm Gear Clamp
Width      :      1/2 in
Packaging Quantity      :      10 BX
Series      :      LSS
Maximum Clamp Diameter      :      7 in
Minimum Clamp Diameter      :      2-7/8 in
Locking Style      :      Screw Lock
Torque Rating      :      50 in-lb
Material      :      201 Stainless Steel
  • 5/16 in slotted hex head screw design
  • 201 stainless steel band and housing
  • Plated, hardened carbon steel screw

Instructions:

  • Suggested installation torque 25 - 35 in-lb, maximum recommended torque 50 in-lb.

Safety Notes:

  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
