Dixon® MGC6

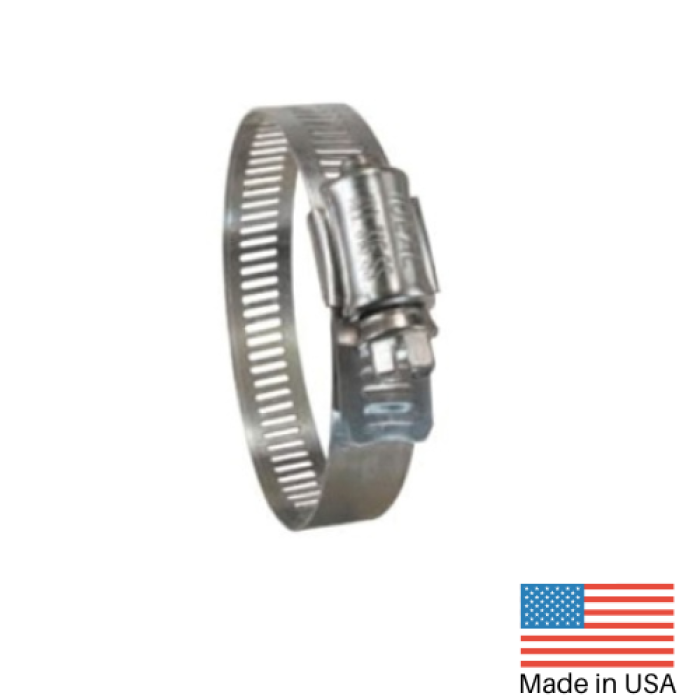

Dixon® MGC6 316 Stainless Steel Marine-Grade Worm Gear Clamp, 3/8 - 7/8 in, 1/2 in W

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN MGC6
  • MPN: MGC6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Marine-Grade Worm Gear Clamp, 7/8 in Maximum Clamp Diameter, 3/8 in Minimum Clamp Diameter, Locking Style: Screw Lock, Torque Rating: 60 in-lb, 316 Stainless Steel, 1/2 in Width, Packaging Quantity: 10 BX

California residents see Prop 65 WARNINGS

Product Type      :      Worm Gear Clamp
Width      :      1/2 in
Packaging Quantity      :      10 BX
Maximum Clamp Diameter      :      7/8 in
Minimum Clamp Diameter      :      3/8 in
Locking Style      :      Screw Lock
Torque Rating      :      60 in-lb
Material      :      316 Stainless Steel
  • Three-piece construction

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • SAE J1508 Certified
  • Mil Spec WW-C-440B Specified

    Safety Notes: Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
